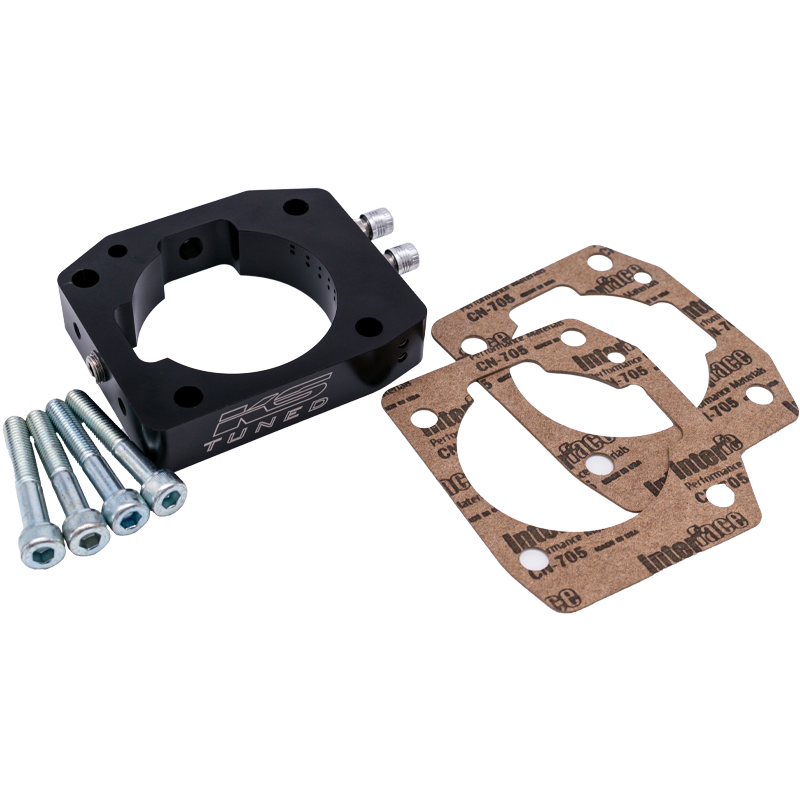

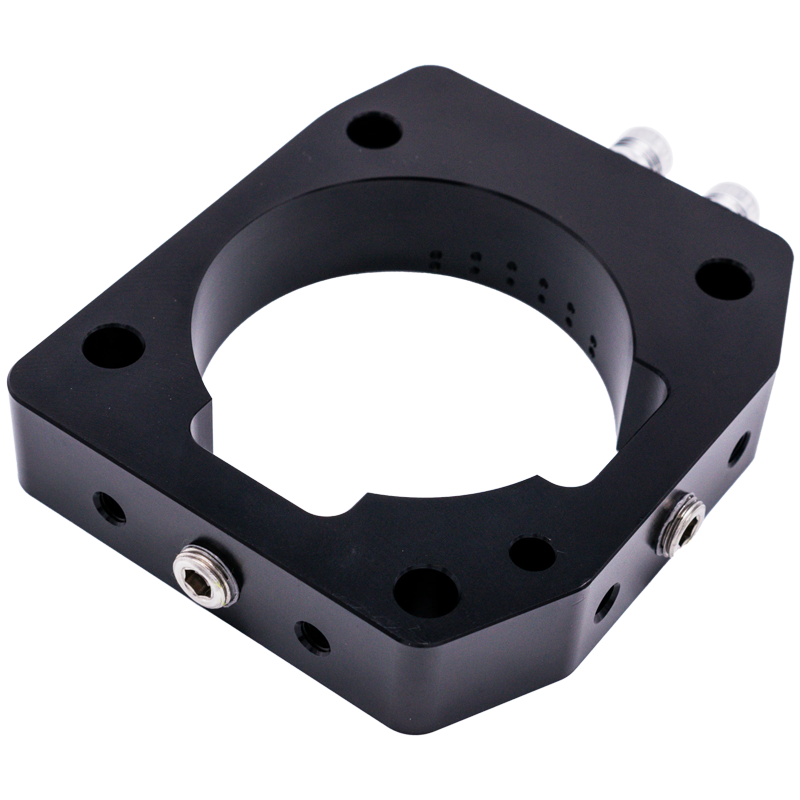

Spray Plate for B/D/F/H/J (Gen 2)

  • $159.00


*68-70mm fits all throttle bodies up to 70mm*

** 74-76mm fits all throttle bodies from 74 through 76mm**

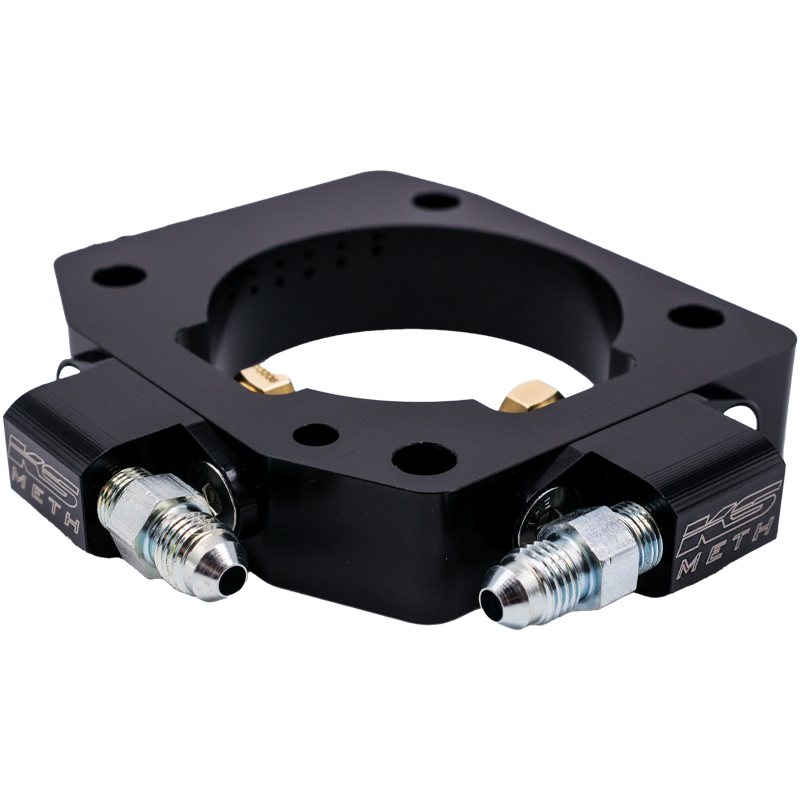

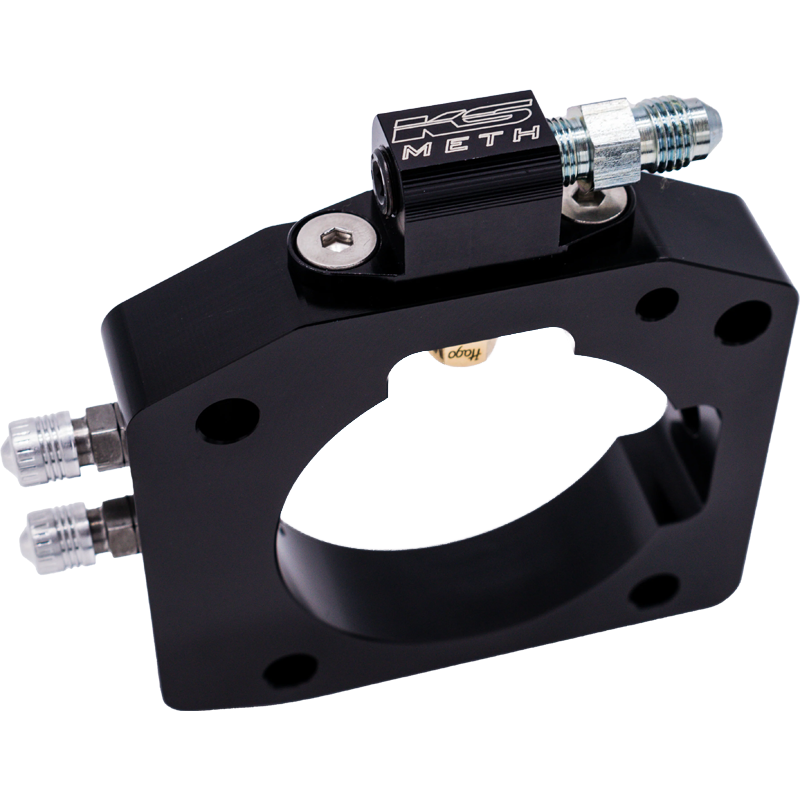

We've redesigned the KS Tuned Spray plates to be slightly smaller and fit the contours of most intake and throttle setups more precisely! DBHFJ Gen 2 Spray Plates now feature provisions for single or dual nozzle methanol injection. No need for ugly fittings tapped in to your intercooler charge tubes, the Gen 2 Spray Plate allows methanol nozzles to be mounted cleanly out of sight. All plates will include plugs to seal the nozzle mounting holes if they are not used and methanol attachment kits are sold separately.

Please purchase your methanol attachment kit here: KS Tuned Methanol Attachment Kit

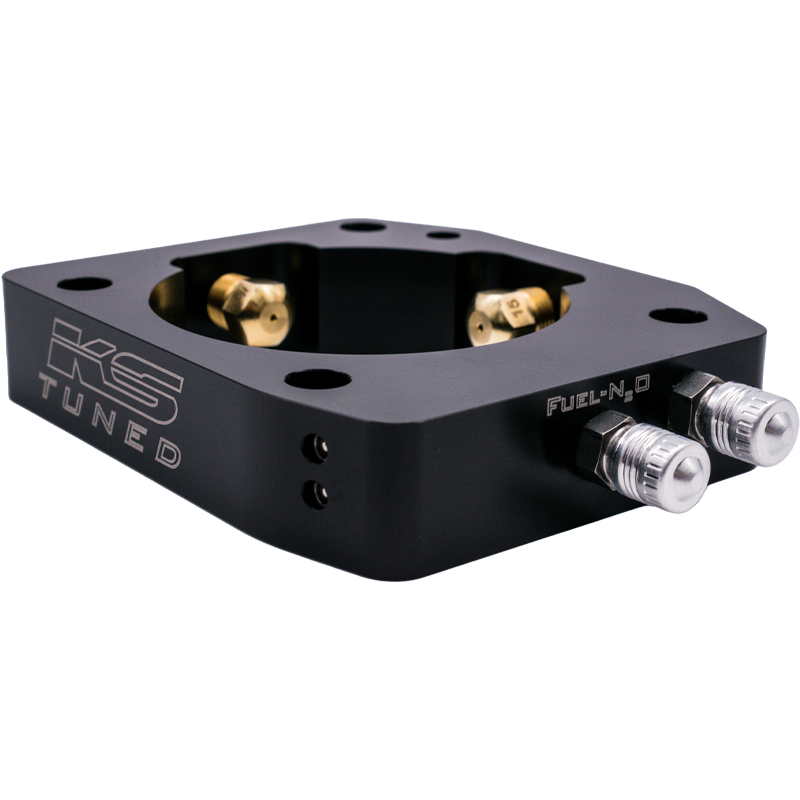

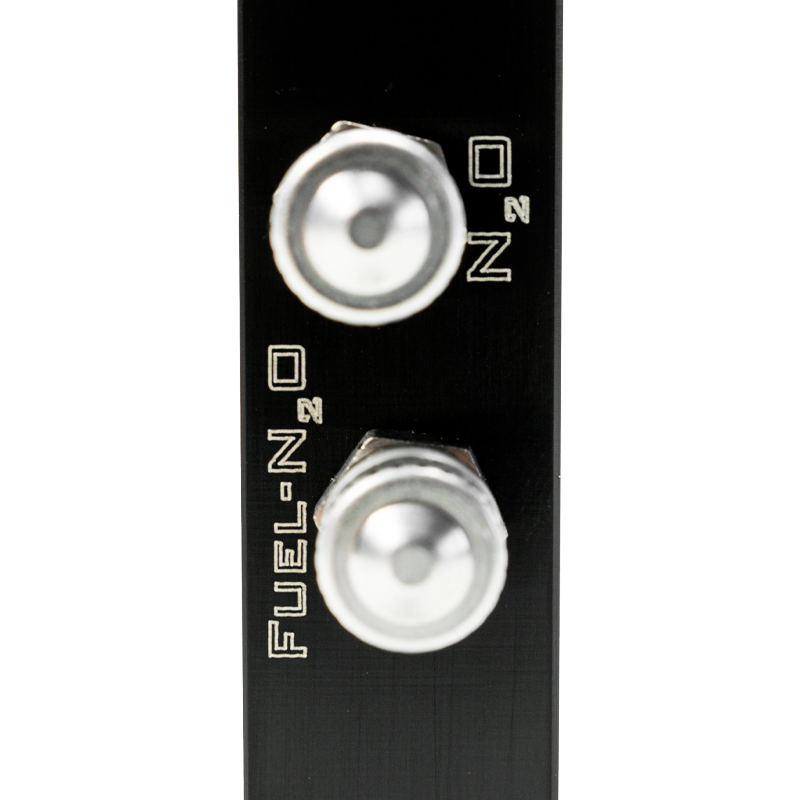

The KS tuned 68mm/74mm spray throttle body plate fits the standard bolt pattern found on 88-00 Hondas and Acuras including the DBHFJ-series engines. 74mm is the largest size commonly found on aftermarket throttle bodies that still retain the IAC valve. Both plates include two stainless steel fittings that accept standard nitrous jets and will allow for a dual stage dry shot or single stage wet shot. Each fitting leads to no less than five injection ports inside the bore of the plate and each shot can be as large as you can find a jet for. *We tested for up to 200 HP per fitting.

*We tested for up to 200 HP per fitting.

Install Note:

  • KS Tuned 68mm Plate is REQUIRED if you are using a stock intake manifold due to the IACV location

Vehicle Fitment Applications:

  • D-series

  • B-series

  • H-series

  • F-series (Accord and S2000)

  • J-series

Spray Plate Nitrous/Fuel Jet Size Chart

 Target HP
Nitrous Jet
Fuel Jet
55 HP 32 17
65 HP 36 19
75 HP 40 21
100 HP 46 26
