PSIg Stainless Pressure Sensor

  • $155.25


Gauge style (PSIg) Pressure Sensors
AEM offers high quality PSIg sensors in 100, 150, 500, 1,000, and 2,000. Gauge style pressure sensors reference pressure above atmospheric pressure. When exposed to atmospheric pressure, gauge style pressure sensors will read 0 psig. Gauge style pressure sensors are commonly used for oil pressure, fuel pressure, brake pressure, nitrous pressure etc.

  • Stainless-steel sensors accurate to within 1% of full scale (pressure sensors)
  • High-quality sealed sensor housings are virtually impervious to automotive fluids (360-degree welded wetted area)
  • Connector and pins included

Sensor Application by Part Number:

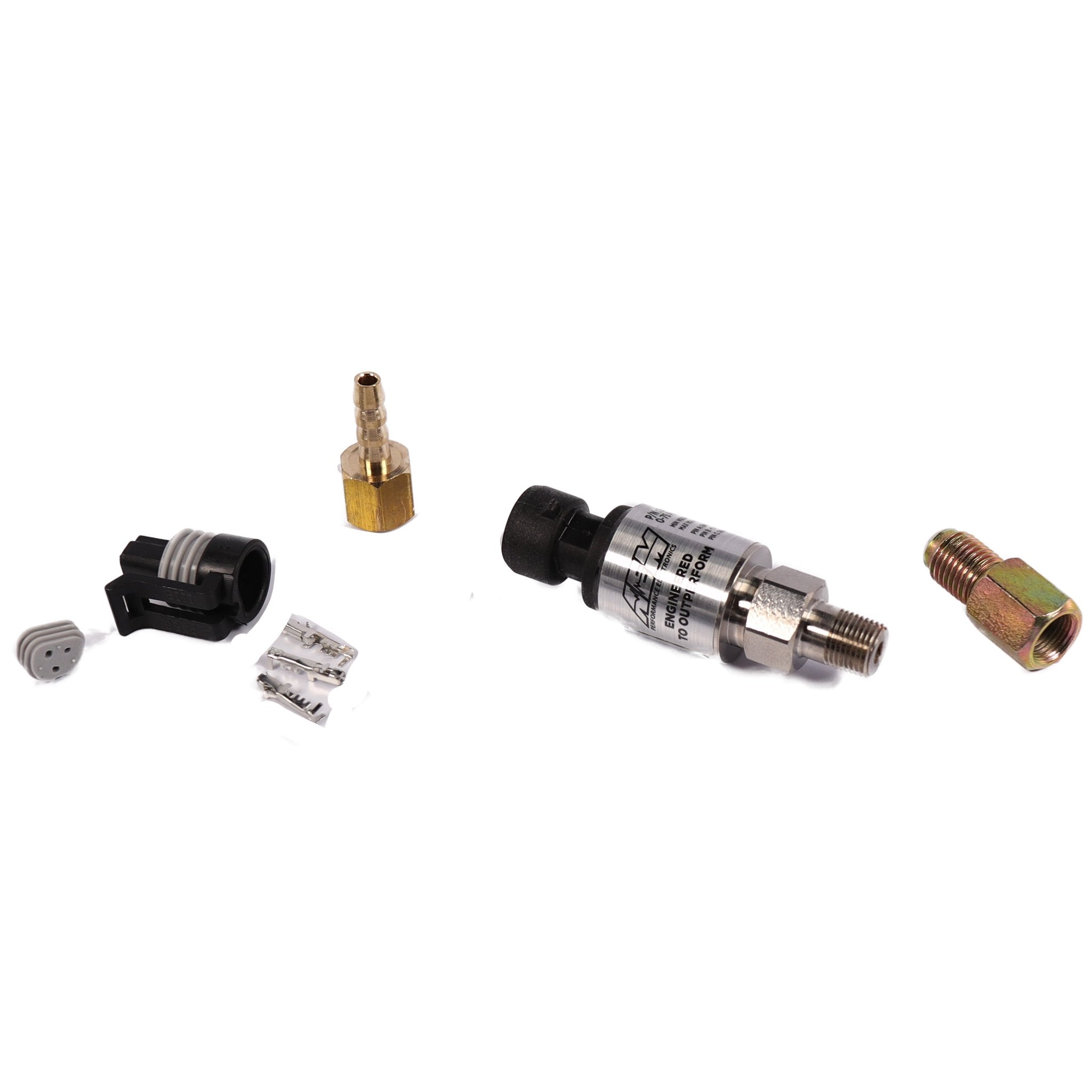

30-2130-100 - 100 PSIg Stainless Sensor Kit. Stainless Steel Sensor Body. 1/8" NPT Male Thread. Includes: 100 PSIg Stainless Sensor, Connector, Pins & 1/8" NPT to -4 Adapter

30-2130-150 - 150 PSIg Stainless Sensor Kit. Stainless Steel Sensor Body. 1/8" NPT Male Thread. Includes: 150 PSIg Stainless Sensor, Connector, Pins & 1/8" NPT to -4 Adapter

30-2130-500 - 500 PSIg Stainless Sensor Kit. Stainless Steel Sensor Body. 1/8" NPT Male Thread. Includes: 500 PSIg Stainless Sensor, Connector, Pins & 1/8" NPT to -4 Adapter

30-2130-1000 - 1000 PSIg Stainless Sensor Kit. Stainless Steel Sensor Body. 1/8" NPT Male Thread. Includes: 1000 PSIg Stainless Sensor, Connector, Pins & 1/8" NPT to -4 Adapter

30-2130-2000 - 2000 PSIg Stainless Sensor Kit. Stainless Steel Sensor Body. 1/8" NPT Male Thread. Includes: 2000 PSIg Stainless Sensor, Connector, Pins & 1/8" NPT to -4 Adapter
