K Series Oil Pan Baffle

  • $100.00

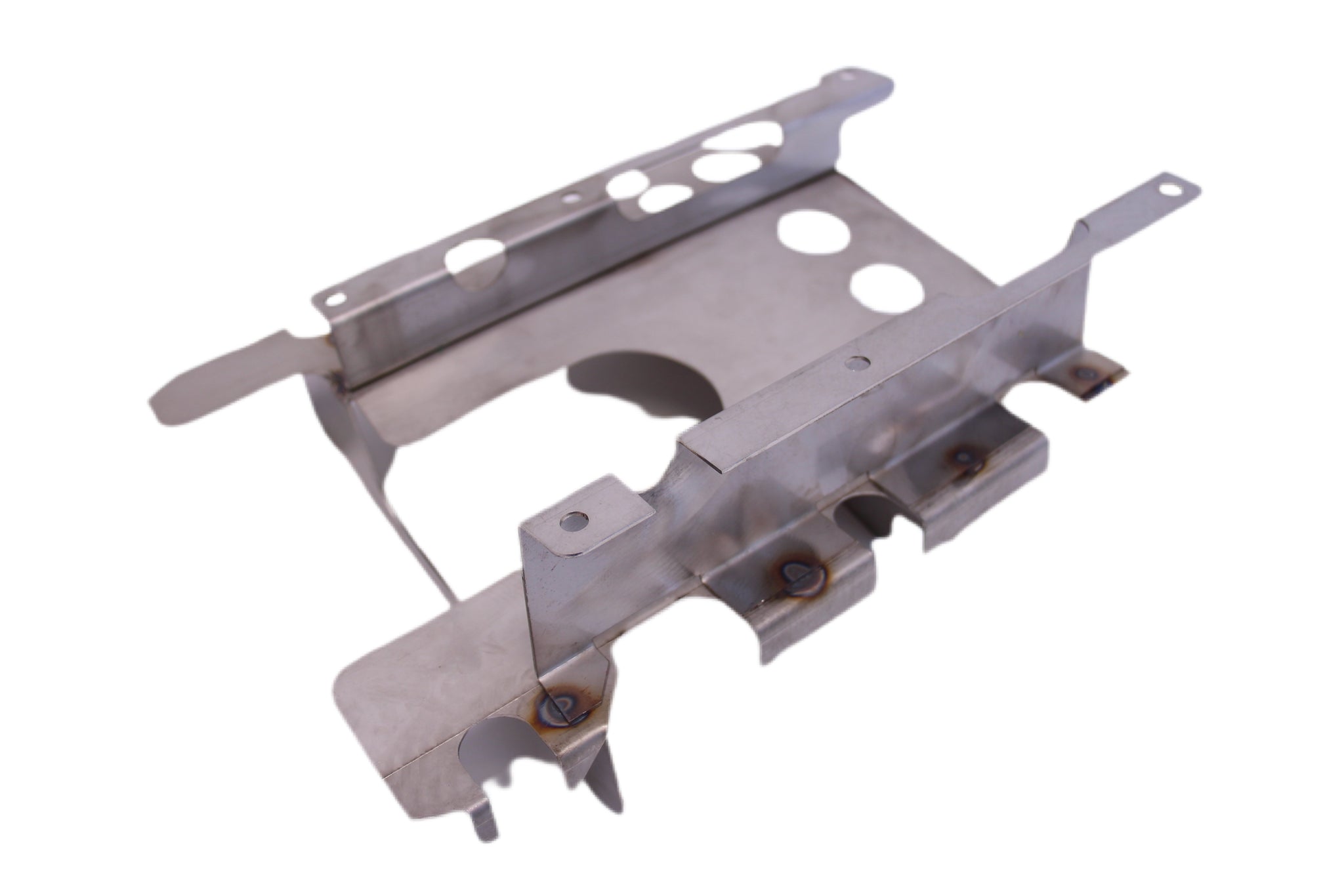

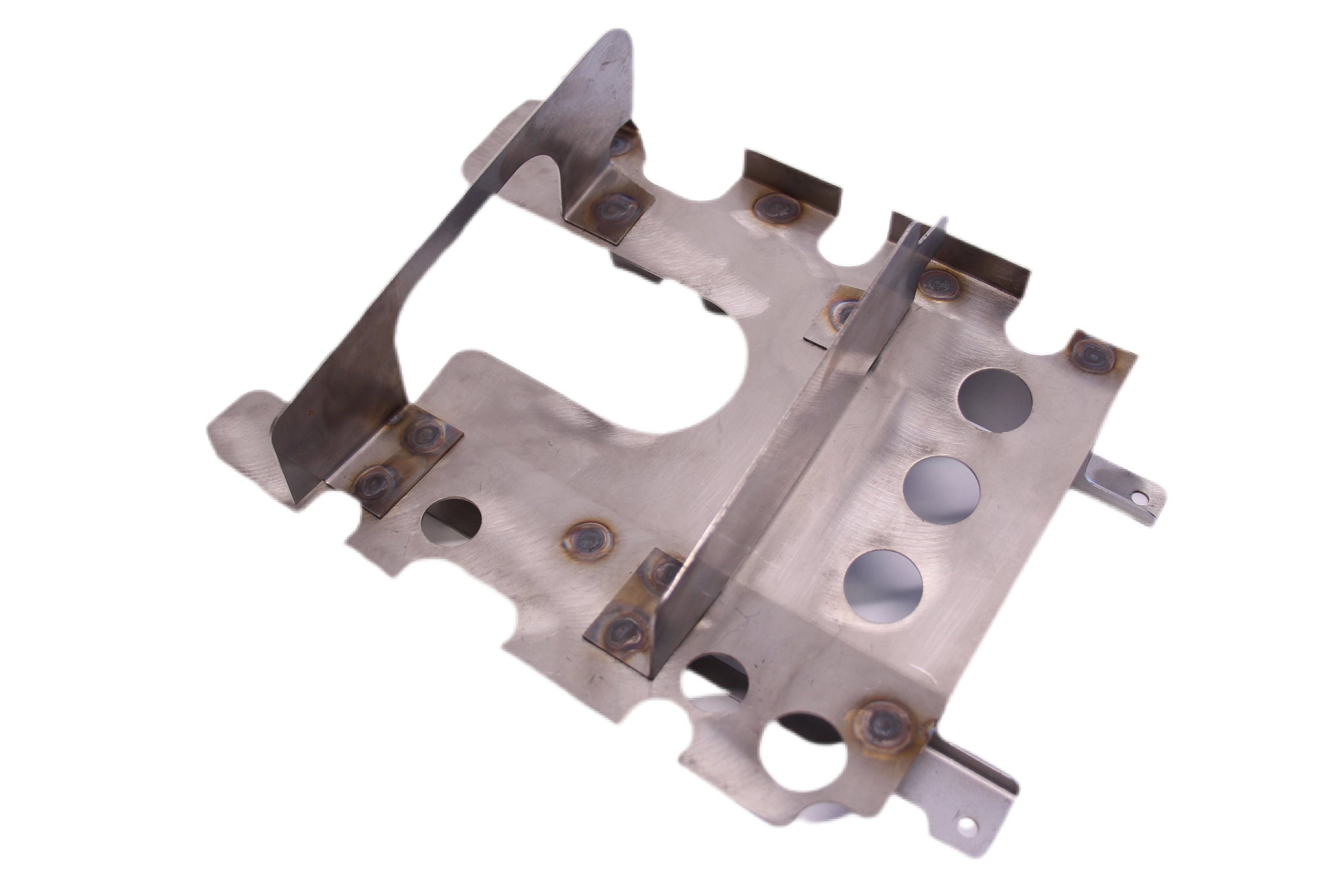

PLM Oil Pan Baffle Kit - Honda K-Series K20 K24

Why is our oil pan baffle better? PLM oil pan baffle is completely welded and not using rivets. Rivets can come loose and break inside your oil pan, potentially cause serious engine damage or failure. We use high quality stainless steel plates, CNC machined, laser cut, and precision bent, then finally tig spot welded at circuital points.

Key Features:

  • Fits engines using K20A/A2/Z1 oil pump and pan

  • Direct bolt-on for JDM K20A, K20A2, K20Z1


  • Stainless steel plates

  • Precision CNC machined

  • Completely welded without rivets nuts

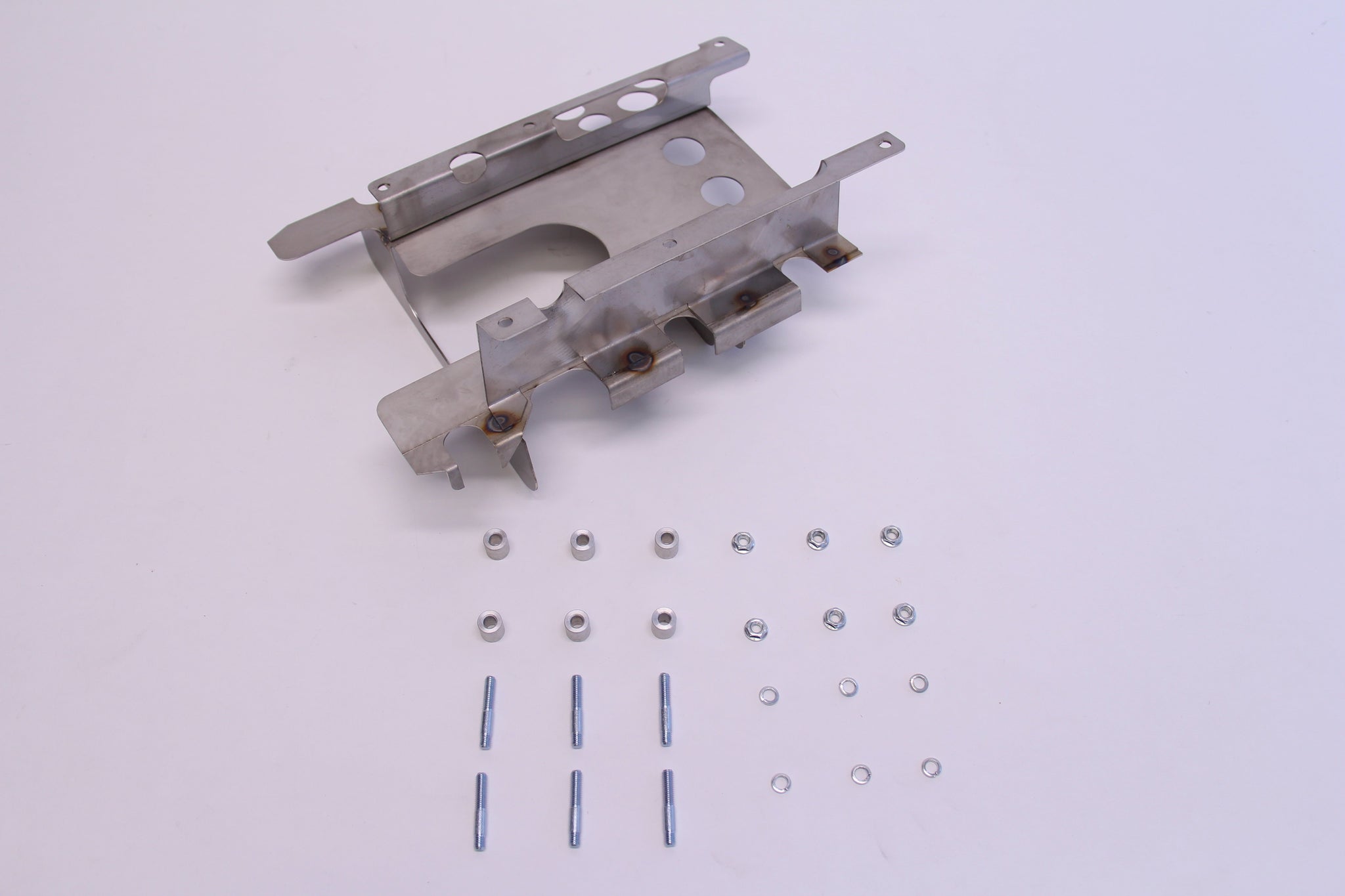

  • Includes all hardware for bolt-on installation

  • No welding required

Designed to work with Honda K-Series engines that have the following parts:

  • RSX-S oil pan: PN 1200-PRB-000

  • RSX-S oil pump: PN 15100-PRB-A01

  • RSX-S chain: PN 13441-PCX-004

  • RSX-S chain guide: PN 13460-PNC-004

  • Need to use 02-06 RSX Type-S oil pump and pan
