Hondata Low Pressure Fuel Pump Upgrade

This pump kit is designed for direct injection engine builds making more than 500 hp with flex fuel or 550 hp with high octane race fuel. Up to those power levels the stock in tank pump is inadequate to supply the direct injection fuel pump. Check with datalogging. If your DIFP (direct injection fuel pressure) is dropping you need a pump upgrade. This is much more obvious with flex fuel as it requires up to 40 % more volume than race fuel.

Everything needed to install a higher flow and ethanol rated in tank pump into:

• 2015-2016 Civic FK2 Civic Type R

• 2017-2022 FK8 Civic Type R

• 2016-2022 Civic 1.5 Turbo
• 2017-2022 Civic Si
• 2017+ Honda Accord 1.5 and 2.0 turbo

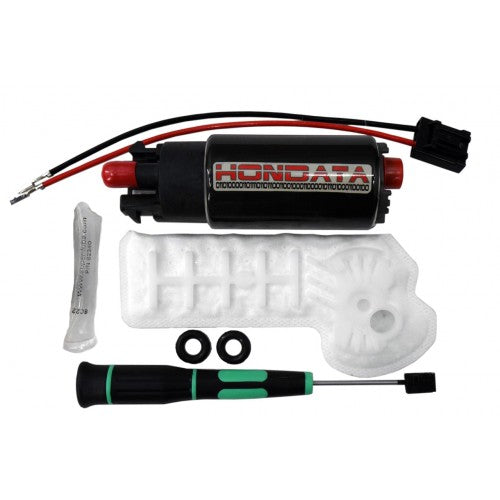

The kit includes:

• 300 l/hour ethanol rated fuel pump

• Electrical fly lead

• screwdriver to replace the Honda fly lead

• 2 O Rings

• O Ring lubrication

• Filter sock

• Install Instructions

Fuel pump specifications:

• In tank pump	In tank flow l/h @ 4.8 bar (70 psi)	Current (amps)
  Hondata	205	13.2
  Civic Type R	160	8.7
  2017 Civic 1.5	155	7.0
  2018 Accord	185	8.9
