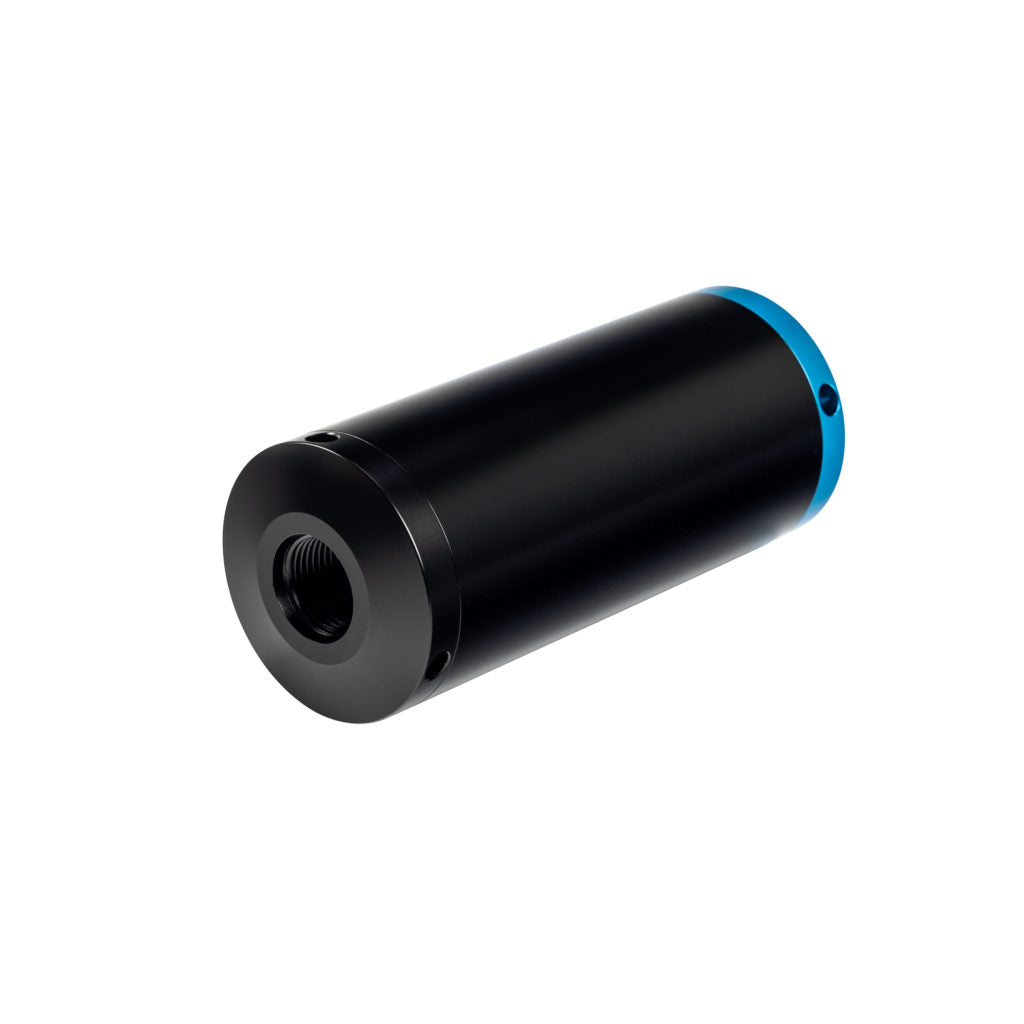

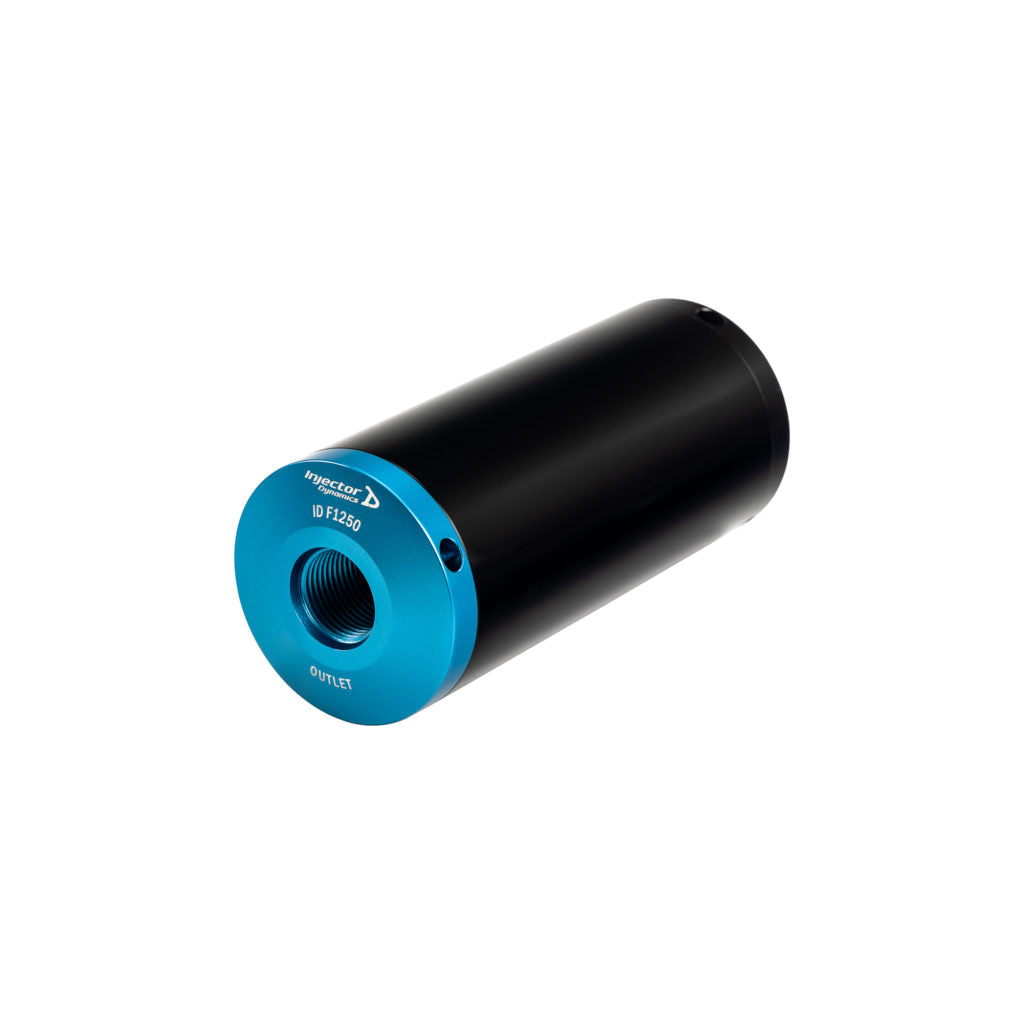

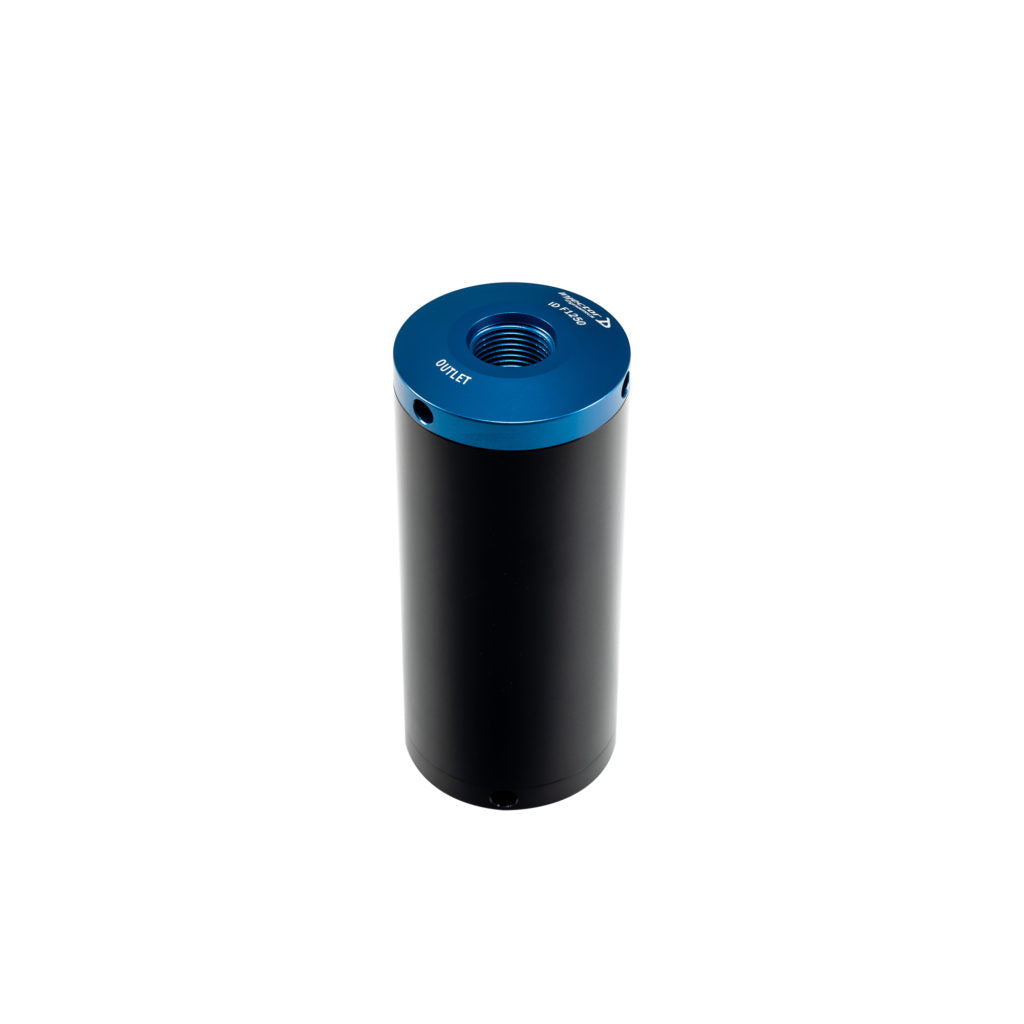

F1250 Fuel Filter

  • $165.00

An electronic fuel injector is the most precise component in a modern engine, with dimensions and tolerances measured in microns.

Trouble free operation requires proper filtration; defined by Bosch as a minimum capture efficiency of 87% at 5 microns, and 100% at 35 microns. To put that in perspective, the average human hair measures approximately 75 microns in diameter.

The F1250 provides this level of filtration with a pressure drop of 1.1psi at a flow rate of 1,250 l/h – Enough to support ≈2,500hp on ethanol, and ≈3,750 on gasoline.

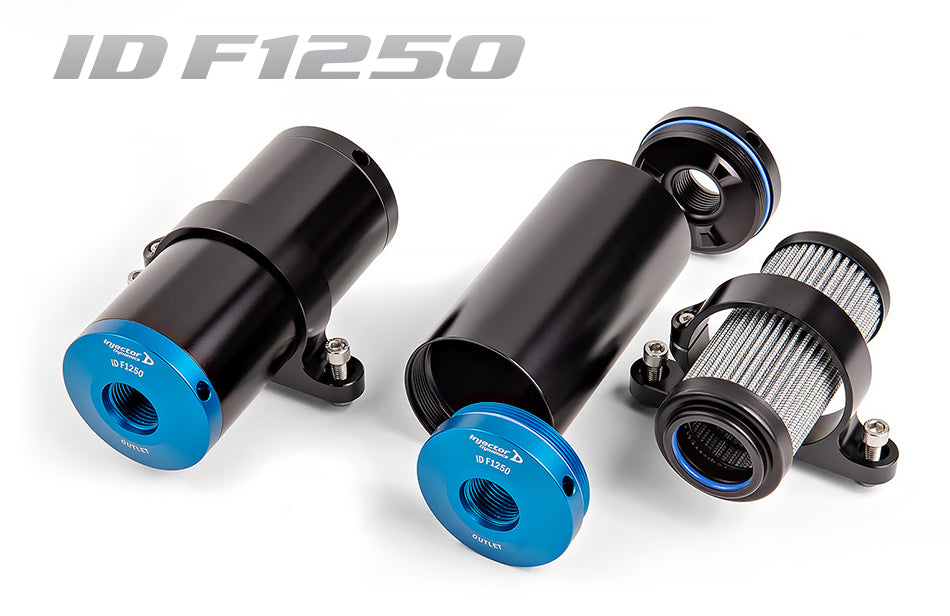

The F1250 has fully anodized internals, fluorosilicone o-rings, and a glass fiber filter element making it compatible with all fuels.

Basic Specifications

Nominal Flow Rate 1250 l/h @ 7.5 kPa (1.1 psi) pressure drop
Maximum Fuel Pressure – 10.0 Bar (145.0 psi)
Fuel Compatibility – Compatible With All Known Fuels
Fluid Connection SAE -10 ORB port

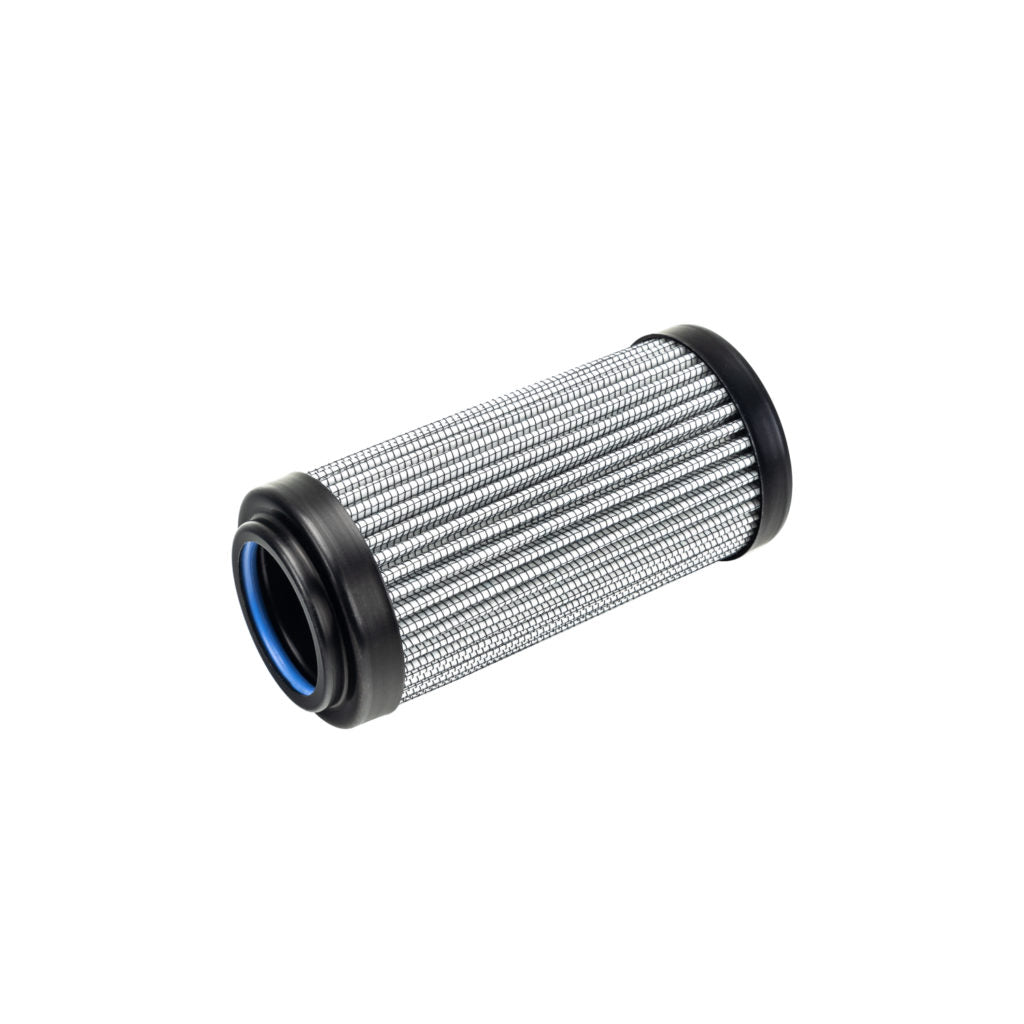

*Filter element is included in all F1250 purchases*

*Mount is NOT included, click HERE to purchase the mounting bracket separately*
