ECU Tester

  • $260.00


For experienced professionals only. No user instructions are included, only information regarding wiring pinout and error codes.

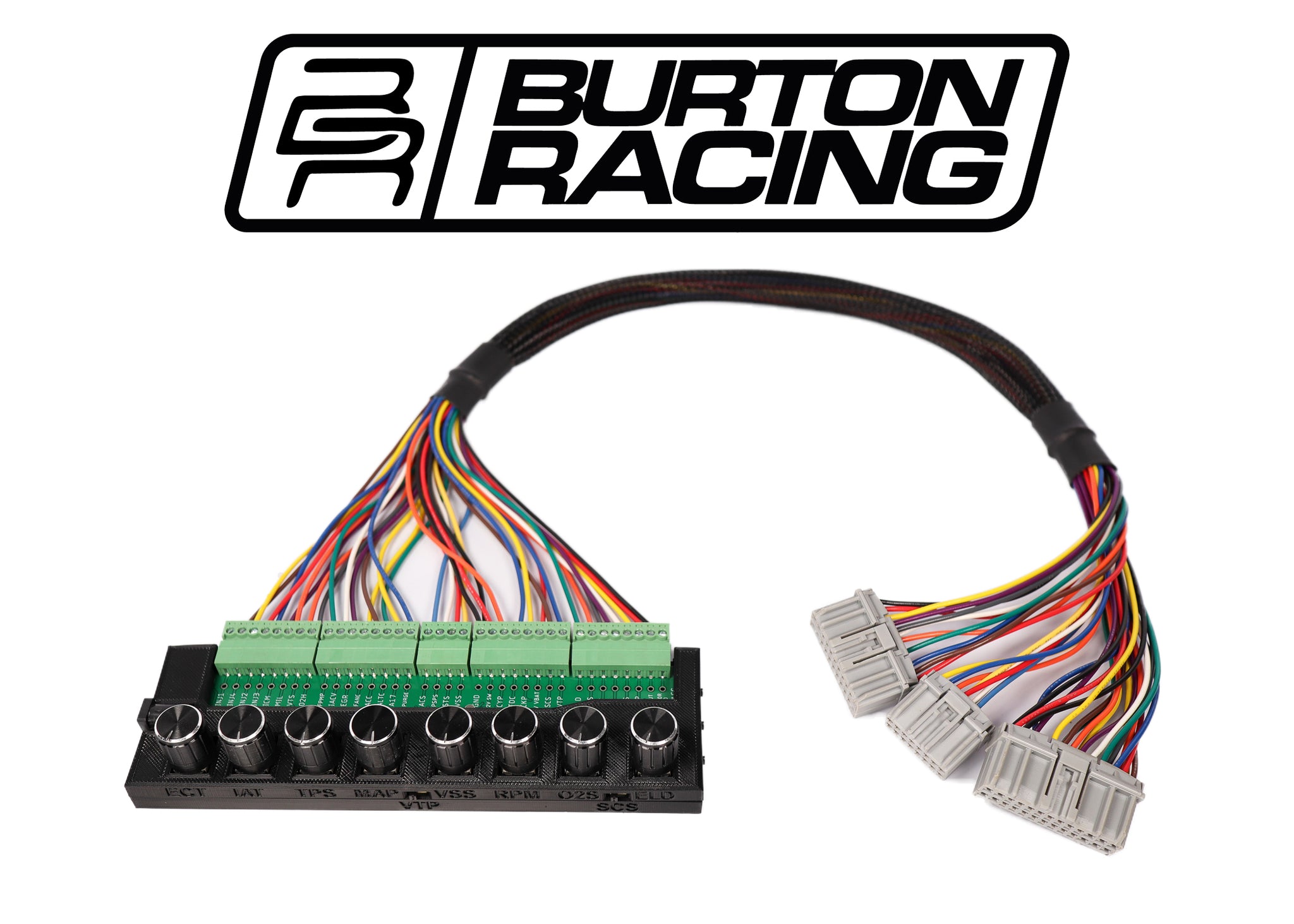

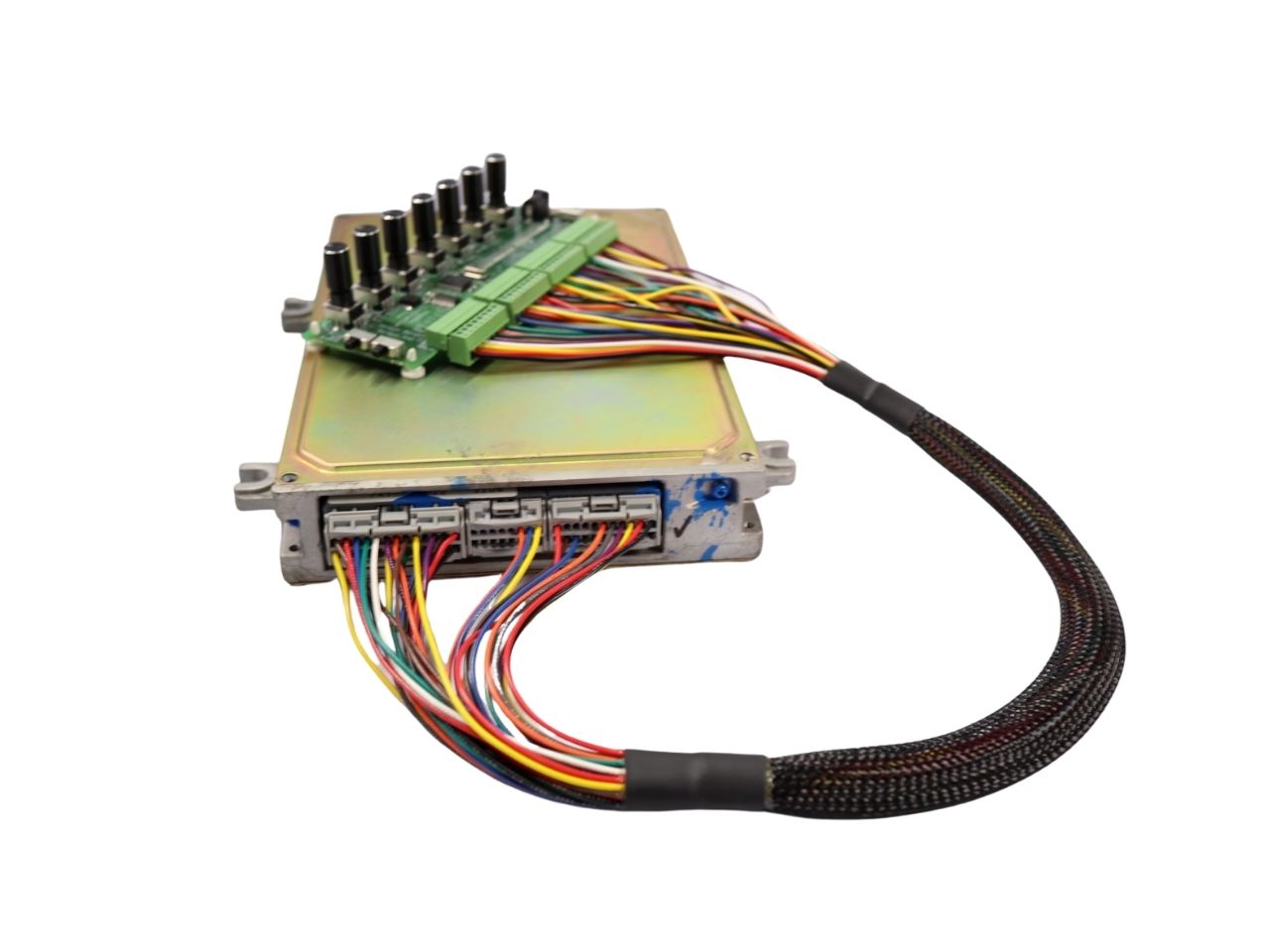

This ECU Test Kit/Engine Simulator is the complete package you need to test, diagnose and repair Honda OBD1 ECUs. Burton Racing has developed this kit to be complete with brand new wiring harness and power adapter. This simulator is enclosed in a plastic housing to insulate the system from a table top surface as well as provide additional protection of the control systems.

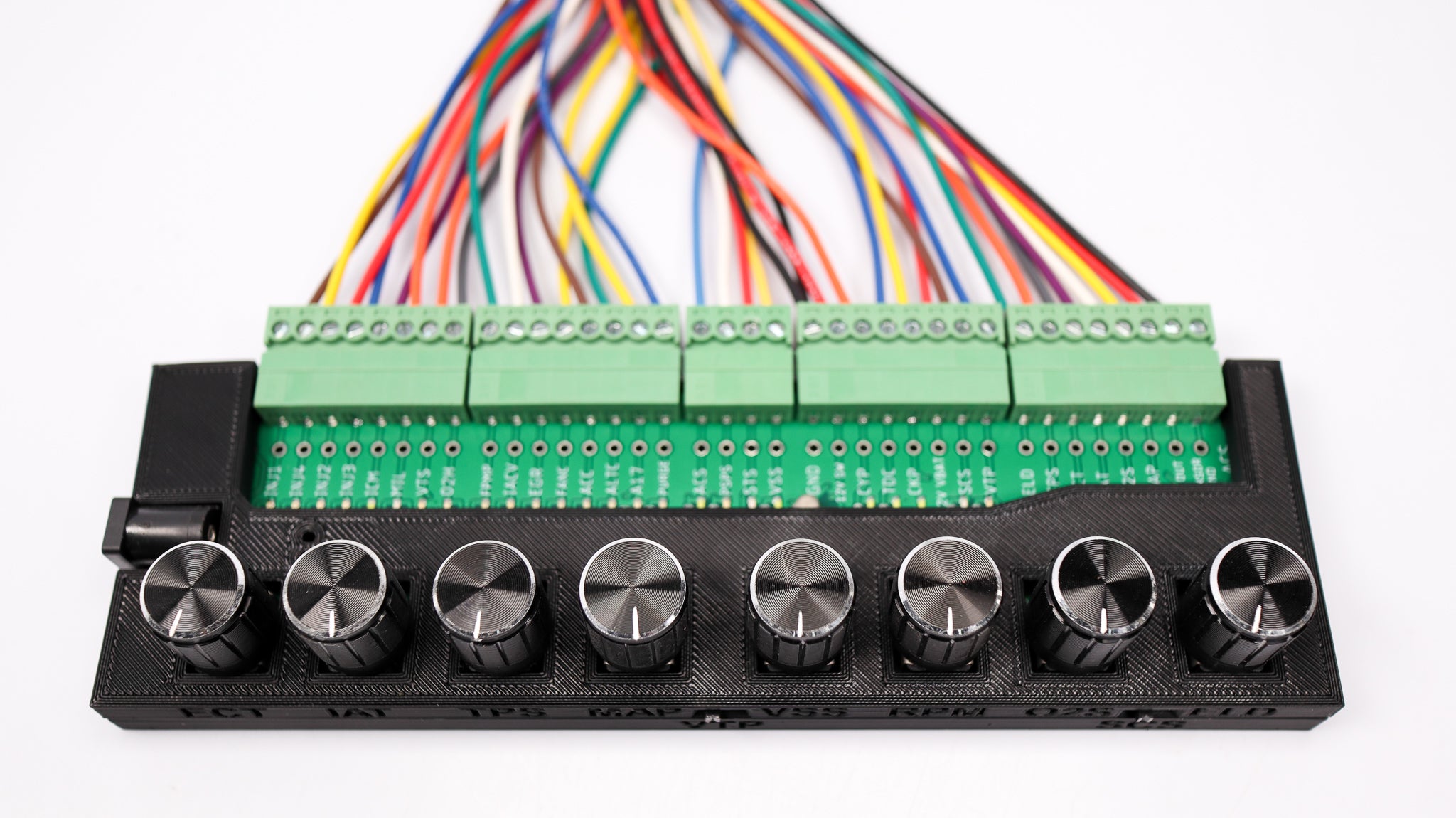

This simulator supplies inputs and outputs of various functions needed for the ECU to simulate engine running conditions. Each specific feature of the control board are as listed below.

Indicator LED:

  • Injector 1
  • Injector 2
  • Injector 3
  • Injector 4
  • Ignition Control Module
  • Check Engine Light
  • VTEC Solenoid
  • Oxygen Sensor Heater
  • Fuel Pump
  • Idle Air Control Valve
  • EGR Exhaust Gas Solenoid
  • Fan Control
  • AC Clutch
  • Alternator Control
  • IAB Secondary Throttle Bodies
  • Purge Solenoid
  • AC Switch
  • Power Steering Switch
  • Starter Signal Switch
  • Vehicle Speed
  • CYP Output
  • TDC Output
  • CKP Output
  • Service Check Signal
  • VTEC Pressure Switch

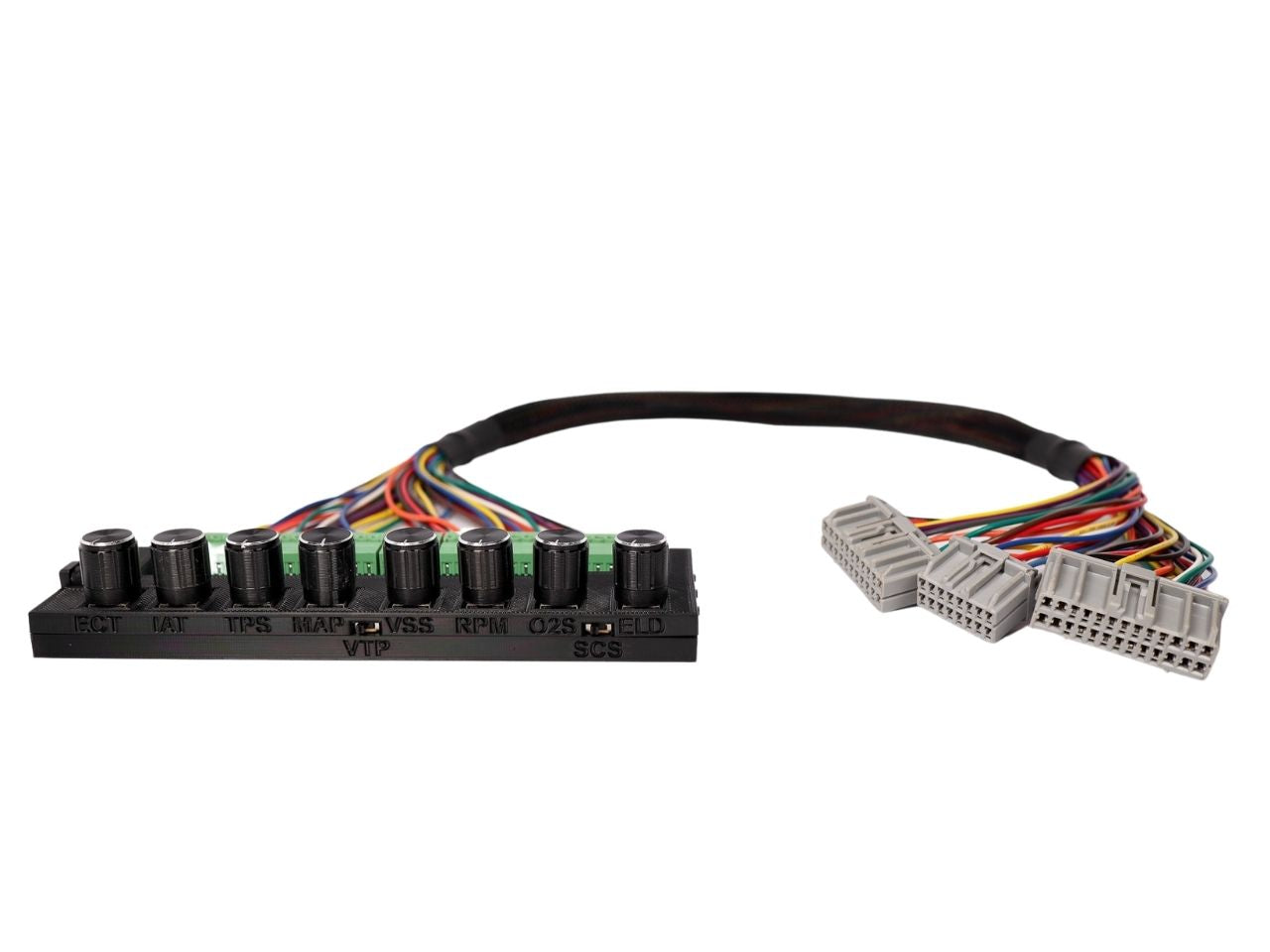

Variable User Controls:

  • Engine Coolant Temperature
  • Intake Air Temperature
  • Throttle Position
  • Manifold Pressure
  • Vehicle Speed
  • RPM Engine Speed
  • Oxygen Sensor
  • Electrical Load Detector

User Controlled Switchs:

  • Vtec Pressure
  • Service Check
  • Starter Signal
  • Power Steering
  • AC

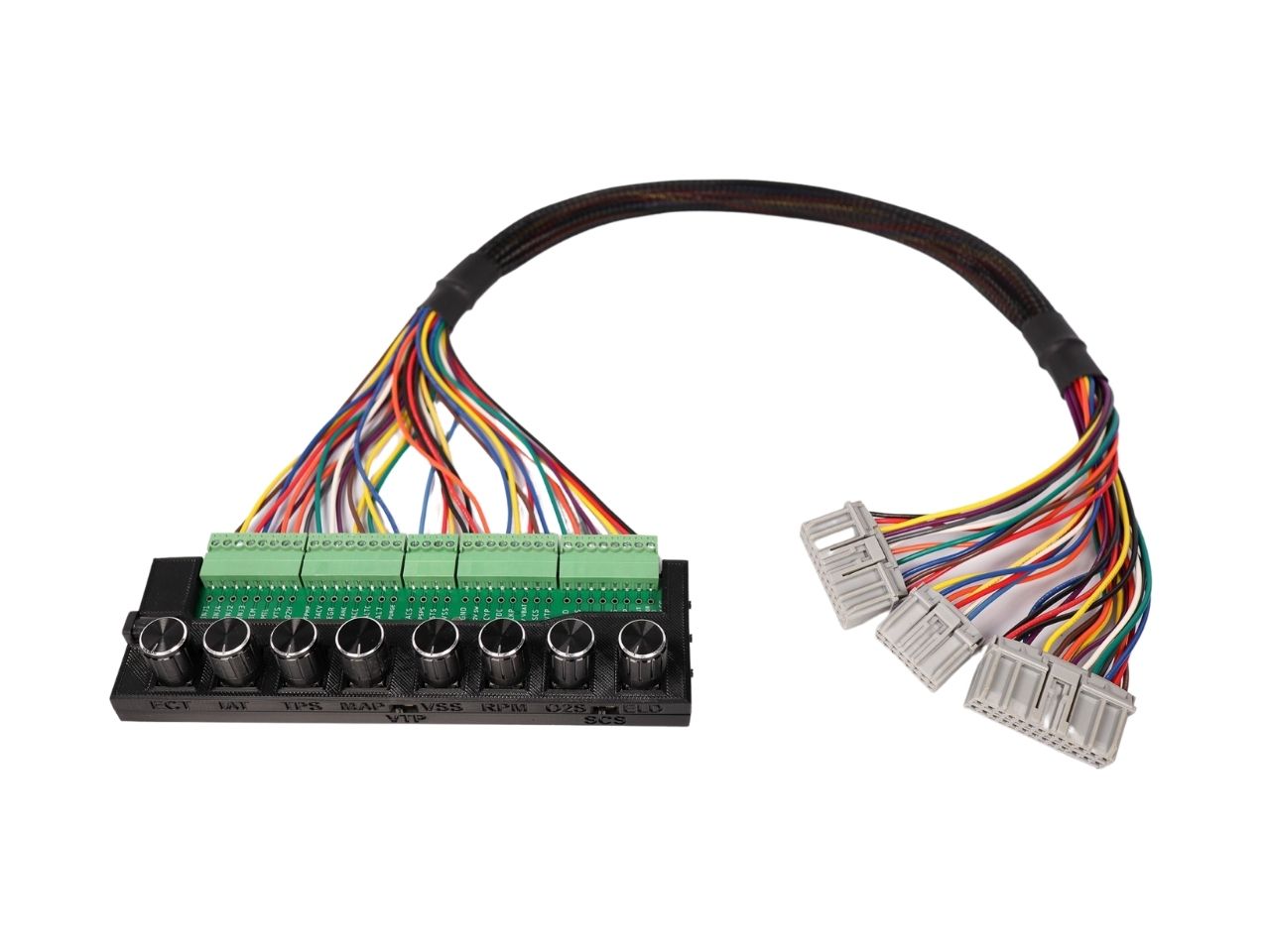

*Kit includes one board, one harness extension (2 feet), one wall power adapter*

*ECU not included*
