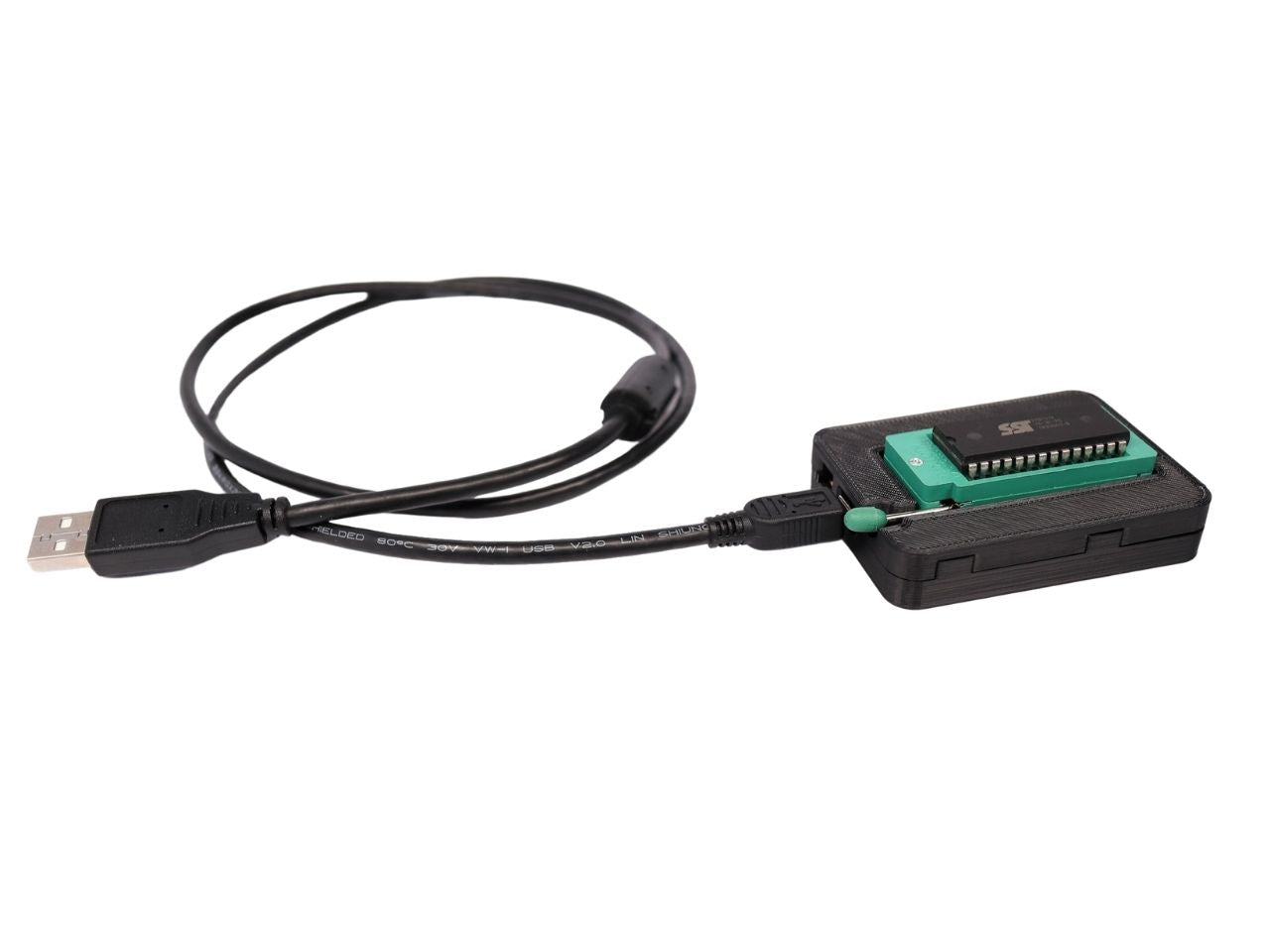

We offer a complete, simple to use, and advanced feature chip burning solution for the Honda/Acura 28-pin EPROM based tuning platforms. This burner has the ability to not only burn the standard SST chips but also many more of the aftermarket units available since the original SST 27SF512 has been out of production for several years now.

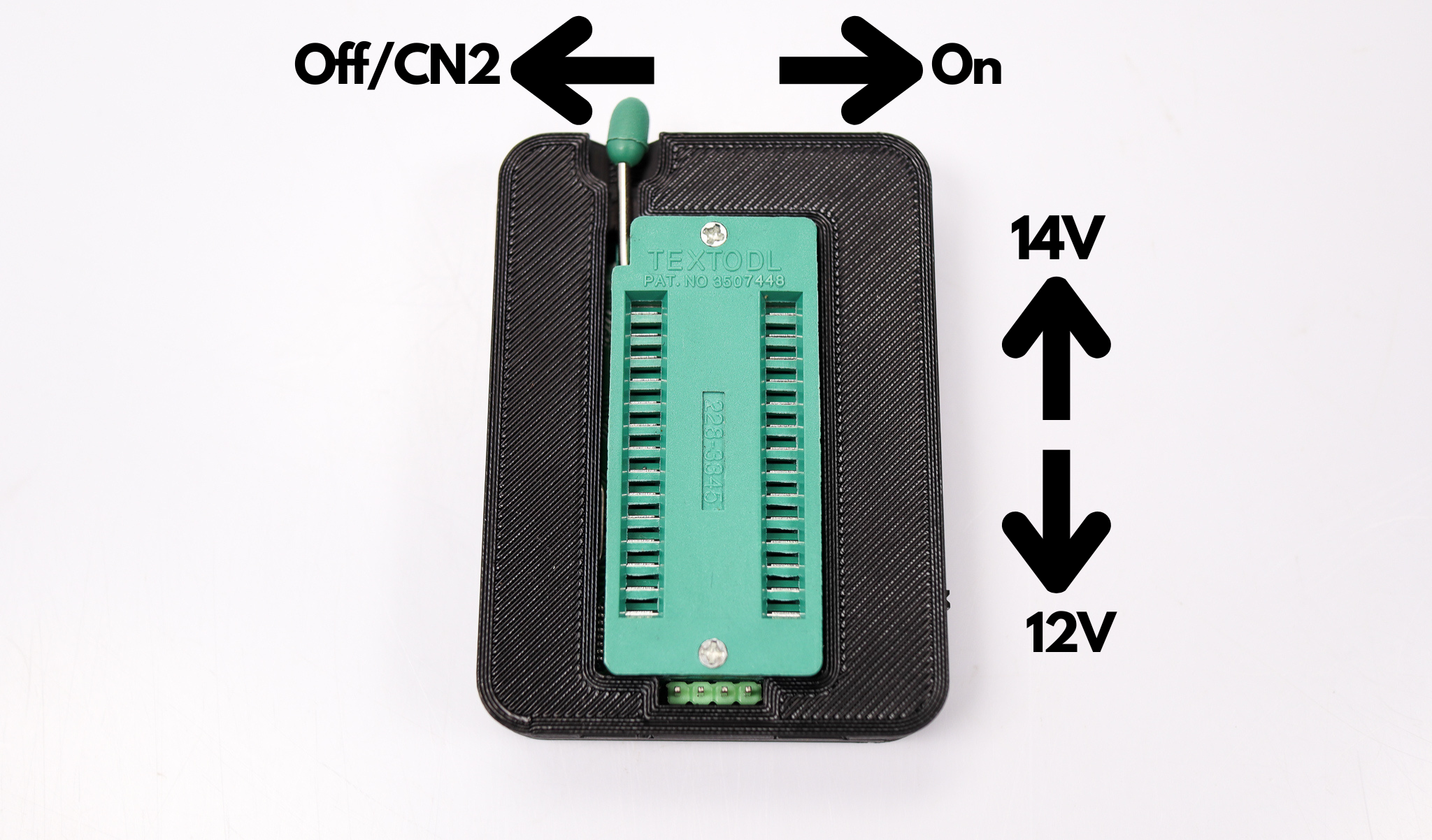

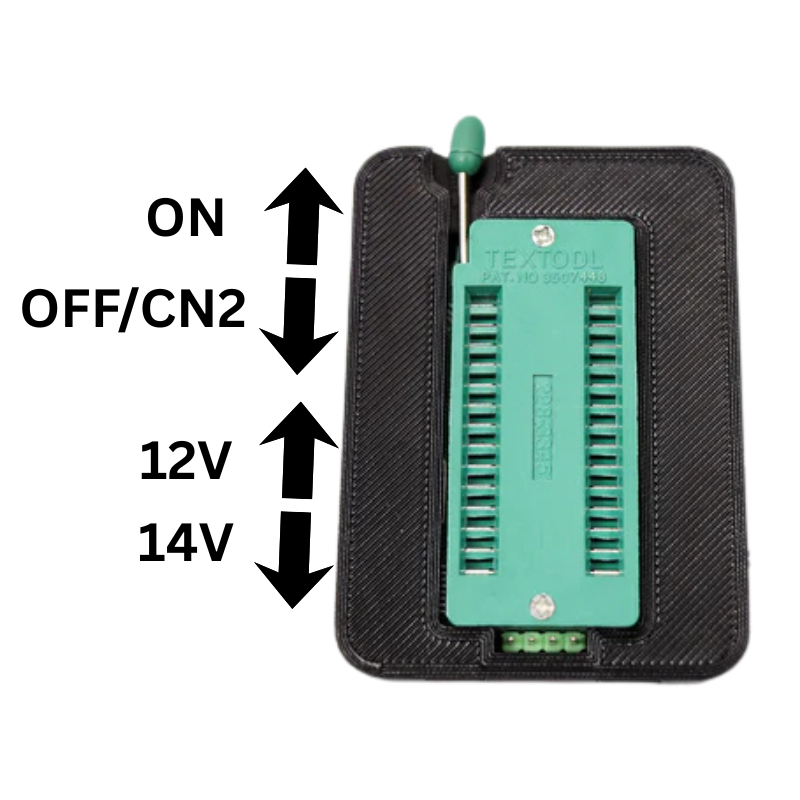

The burner is equipped with 2 switches to allow flexibility of use by also functioning as a CN2 based datalogger for OBD1 ecu's in addition to its original use of a chip burner. The second switch allows users to change from 12V or 14V mode for reading and writing the chips, some of the fake SST and alternative EPROMs require a 14V signal instead of the original 12V to perform the reading and writing functions. This burner is compatible with 256kb and 512kb chips as well as having the ability to write two maps onto a single 512kb chip for 2timer and multi-tune functions.

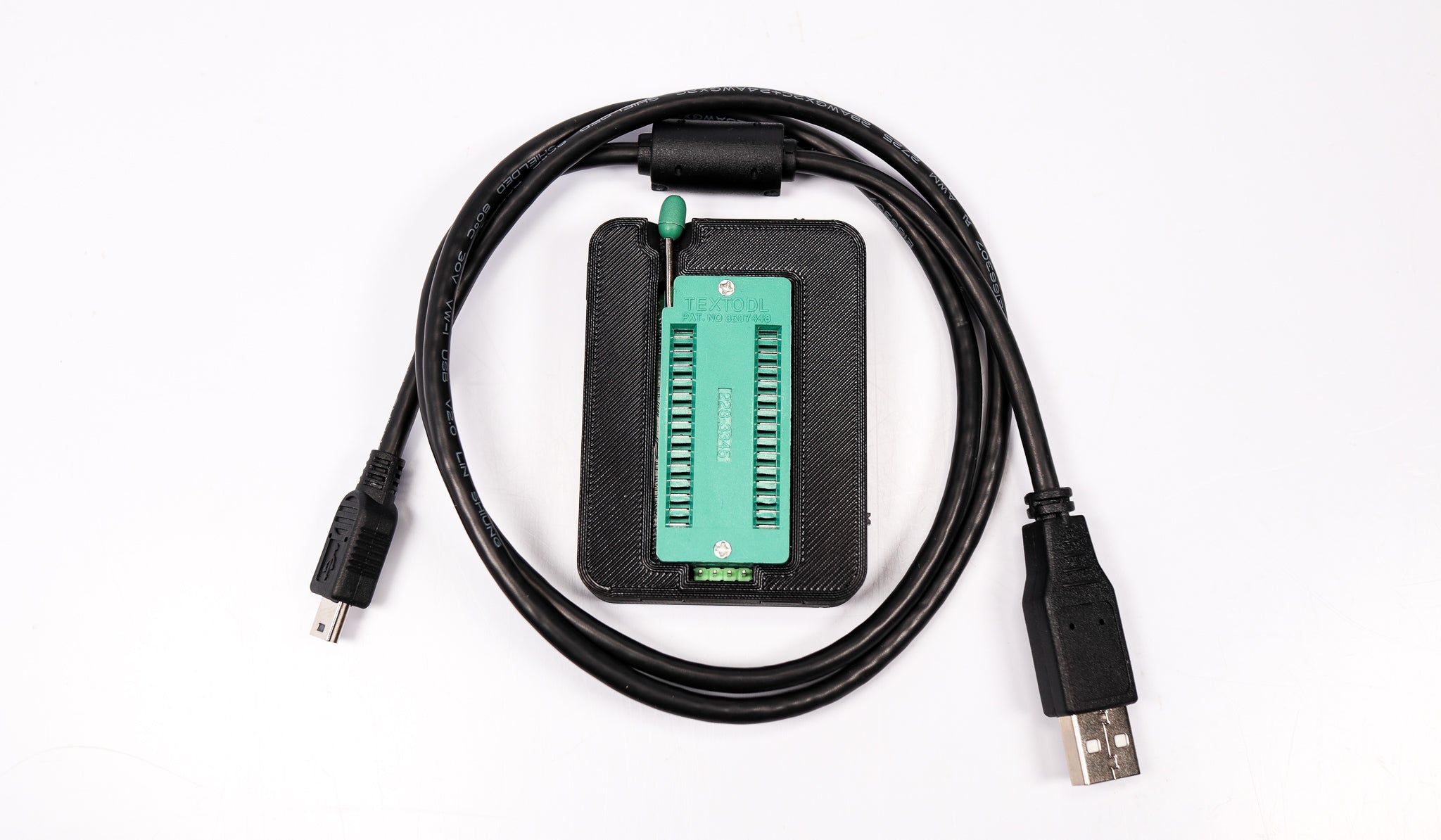

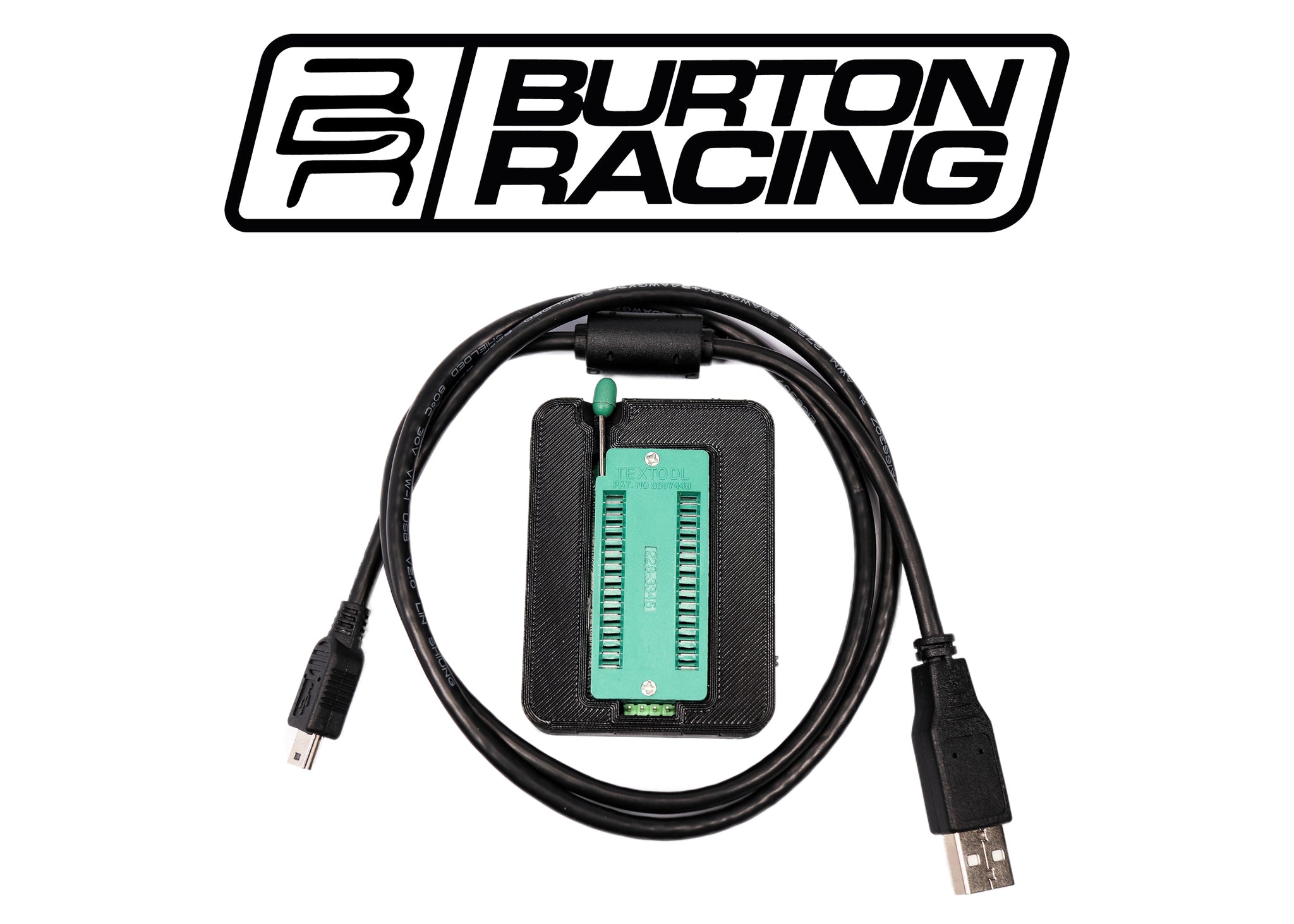

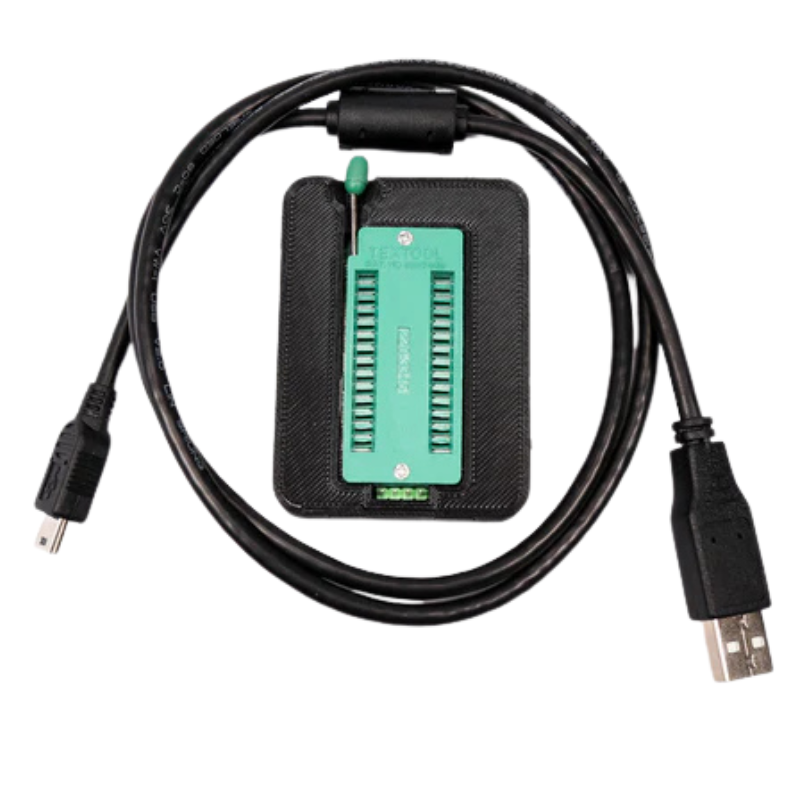

*Includes Chip Burner, USB cable, and data-logging cable*
*Chip or EPROMS are not included*
This Burner is tested with the software linked below and is stable to burn .bin files from many different software types.
Click HERE for chip software.
PLEASE NOTE: We ONLY offer hardware, we do not sell or supply any software. This product is for experienced professionals ONLY. We are NOT able to advise or instruct you on how to burn, write, or tune. We do NOT support outdated software such as Crome or 3rd party writing software. Please use more current software and burn directly from the software itself.
Drivers should install automatically when first plugging the BMBurner to the computer. If they aren't, or in case of windows XP, you can download CH340 Drivers HERE.
