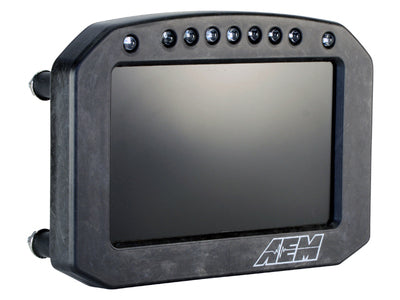

AEM CD-5 Carbon Flat Panel Digital Dash Display

OVERVIEW
CD-5 Carbon Flat Panel Digital Dash Displays are perfect for flush mount installation or in-dash enclosures with tight tolerances. They include all of the robust features found in the original CD-5 Carbon Dashes, but do not have buttons or an LED shade hood built into the enclosure.

CD-5 Carbon Flat Panel Digital Dash Displays feature full-color, daylight readable screens surrounded by a slim, tough, lightweight flow-molded carbon fiber composite housing. Seven ultra-bright LEDs span the top of the display housings for RPM and shift light indication. Users can program them to ascend in specific increments based on RPM range and flash when it is time to shift. Brightness is user programmable on the fixed color LEDs. A remote button kit (PN 30-3610, sold separately) easily wires into the CD Carbon wiring harness and allows users to change pages and clear memory. Two additional programmable LEDs are included in the enclosure and are fully programmable.

Four CD Carbon Flat Panel packages are available:

• PN 30-5600F, CD-5F Carbon Flat Panel Non-Logging/ Non-GPS Display
• PN 30-5601F, CD-5FL Carbon Flat Panel Logging Display
• PN 30-5602F, CD-5FG Carbon Flat Panel Non-Logging Display
• PN 30-5603F, CD-5FLG Carbon Flat Panel Logging Display with Internal GPS
