BL54XR Ball Bearing Turbo

BL54XR Ball Bearing Turbo

  • $1,379.99

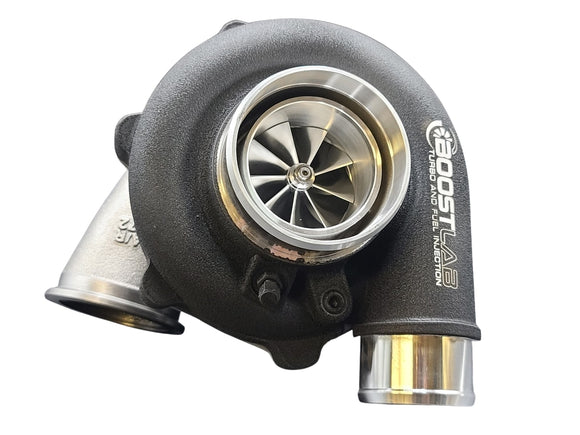

Boost Lab BL54XR Dual Ball Bearing Turbocharger

This turbo features a newly designed Point-Milled Billet 54mm compressor wheel and a performance high flow 49mm Turbine Wheel. This unit comes standard with a ported 3" Inlet / 2" V-Band Outlet compressor housing. A Dual Ball Bearing oil and water cooled CHRA designed to handle high boost operation with ease, water cooling must be used with this turbocharger. The BL54XR is fully assembled and VSR balanced in-house. All of our BL turbochargers come with an industry standard 1 year unlimited mileage warranty.


  • Horsepower Rating: 660hp
  • Compressor Housing: Ported 3" Inlet / 2" V-Band Outlet
  • Compressor Wheel: Point-Milled Billet 54mm
  • Turbine Housing: V-Band In/Out .72 A/R
  • Turbine Wheel: High flow 49mm Inconel Turbine Wheel
  • Bearing Type: Dual Ball Bearing
  • Bolt Specs: Oil Feed - 7/16-24 , Oil Return - 2 Bolt
