Air Temp Sensor 3/8" NPT

  • $57.58


Air Temp Sensor Kit 3/8"NPT.

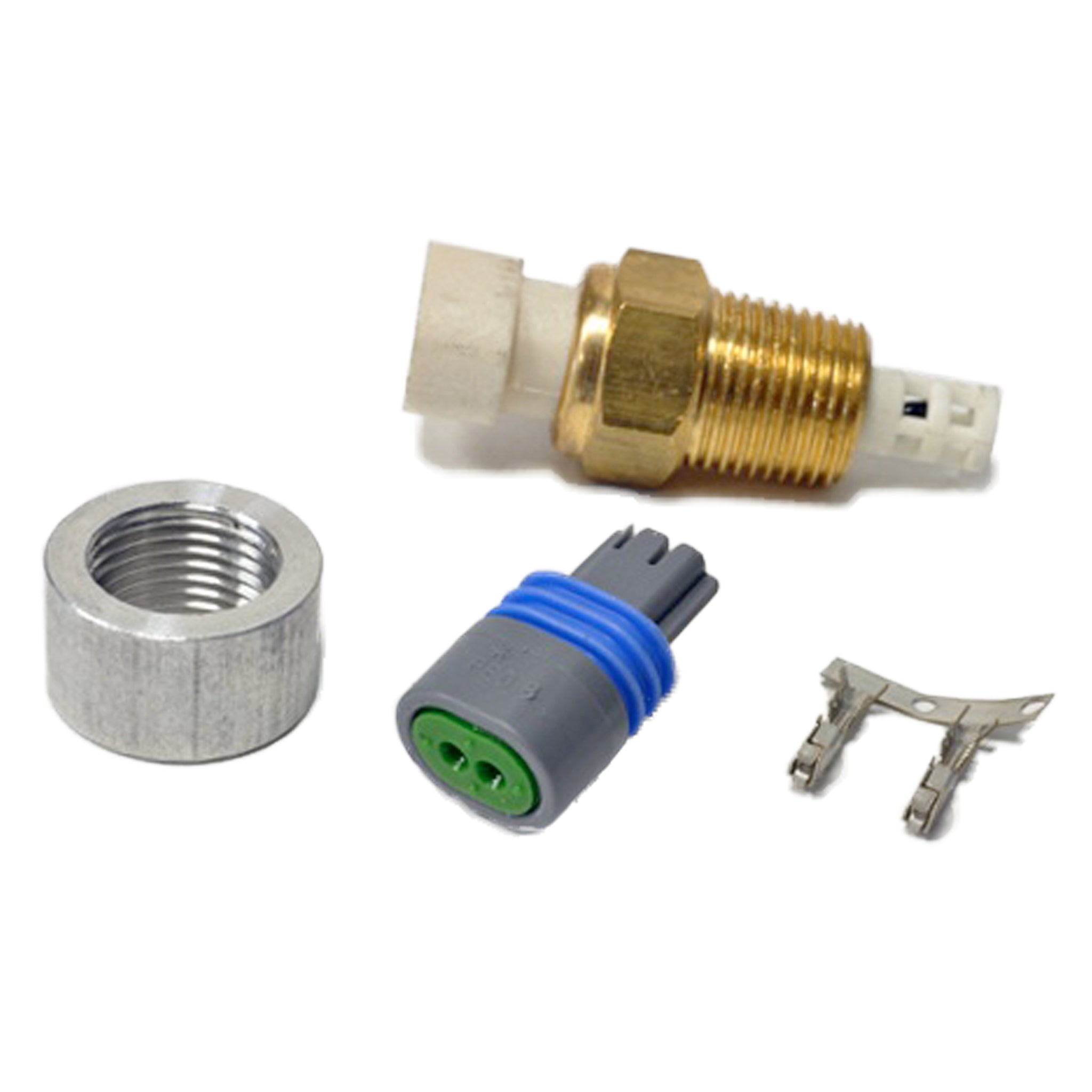

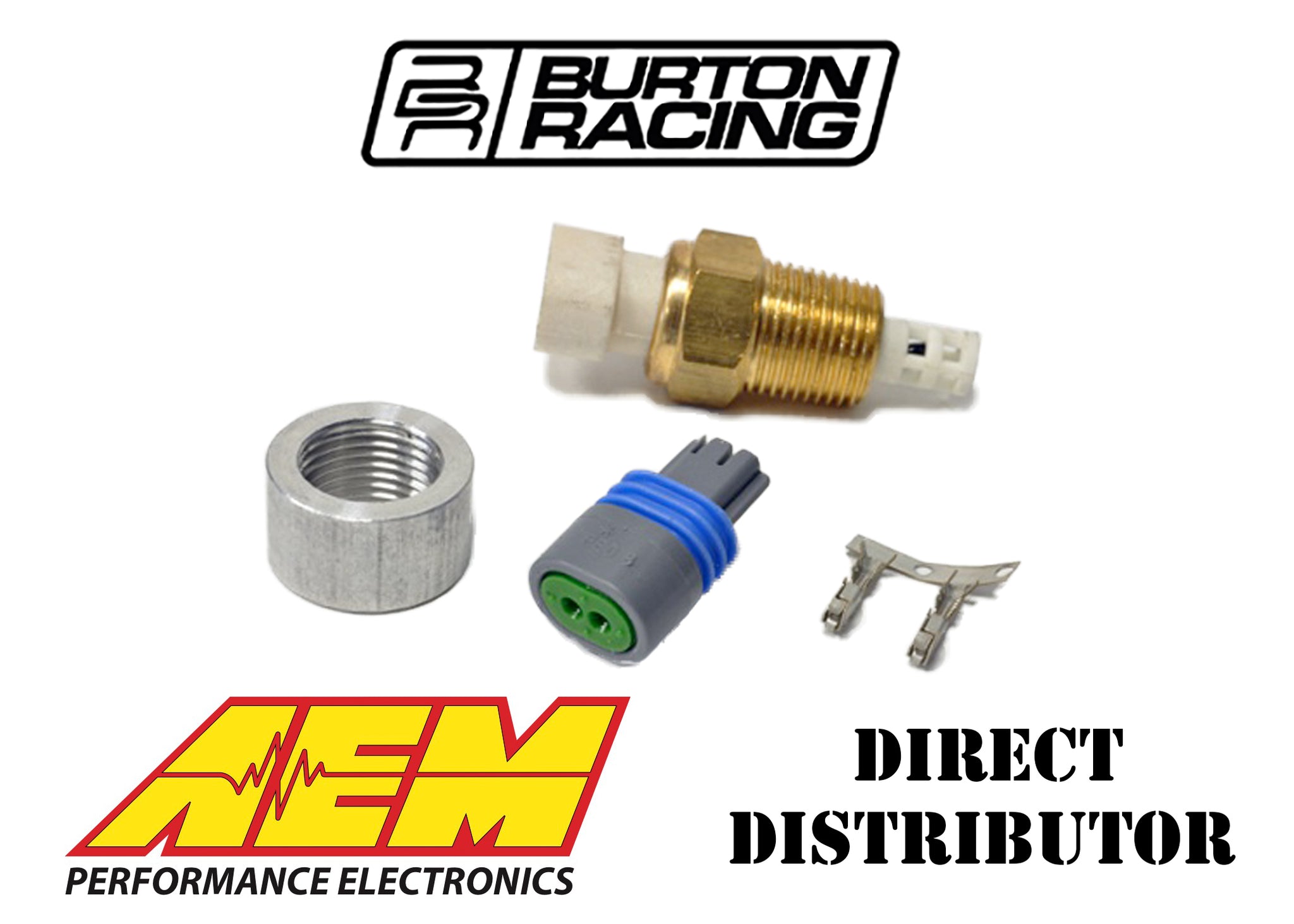

Includes: Air Temp Sensor, 3/8"NPT Aluminum Bung, Connector & Pins

30-2010 - Air Temp Sensor Kit

  • Accuracy: < 1.5°C / 2.7°F
  • Operating Temp: -40C to 135C / -40F to 275F
  • Resistive Range (Ω): See Table
  • Thermal Time Constant: < 15 sec. The time required for the sensor to achieve 63.2% of its steady state value when subjected to a step change in ambient temperature [Tc=(Tf-Ti)*63.2%+Ti]. Test medium: silicone oil
  • Sensor Body Material: Brass
  • Thread: 3/8" NPT
  • Hex Size: 3/4"
  • Installation Torque: 20Nm / 15 ft-lbs
  • Weight: 33.3g
  • Electrical Termination: Weatherproof connector. Includes Mating Connector, Pins & Wire Seals
  • Includes: Air Temp Sensor, 3/8" NPT Alumium Bung, Mating Connector, Pins & Wire Seals
