AEM Water Methanol Injection Kit

  • $465.89


THE AEM WATER/METHANOL INJECTION SYSTEM ADVANTAGE
Water/methanol injection is a proven means for effectively reducing engine inlet air temperatures and suppressing harmful detonation. This allows racers to reliably increase boost and advance ignition timing—without using high-octane racing fuel—for power gains of up to 20%. AEM’s Water/Methanol Injection Systems utilize the most robust hardware combined with more advanced features than any other comparably priced water/methanol system.

Water/Methanol for all Levels of Gas Race Engines
AEM offers two different water/methanol controller designs for gas vehicles:

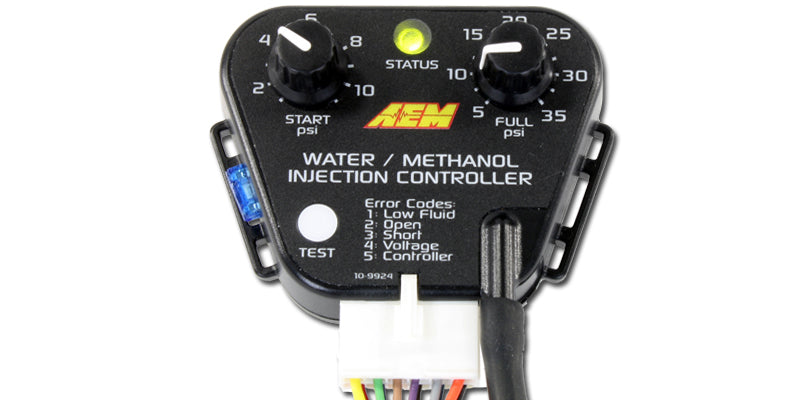

One is boost dependent for forced induction vehicles up to 35 PSI of boost (kit PN 30-3300). The Boost Dependent controller has an on-board manifold absolute pressure (MAP) sensor with a molded-in nipple for a boost hose pickup.

The second controller (Kit PN 30-3350) features a multiple input design that enables users to install AEM’s Water/Methanol Injection Kit on ultra-high boost vehicles (above 35 PSI) using a 0-5v voltage-based external MAP sensor.

Water/Methanol for Diesels of all Boost Levels
AEM Electronics offers two different water/methanol controller designs for HD and Diesel trucks:

One is a Boost Dependent HD Controller and has an on-board MAP sensor (up to 40 PSI) with a molded in nipple for a boost hose pickup (PN 30-3301 with 5 gallon tank, PN 30-3303 tank-less).

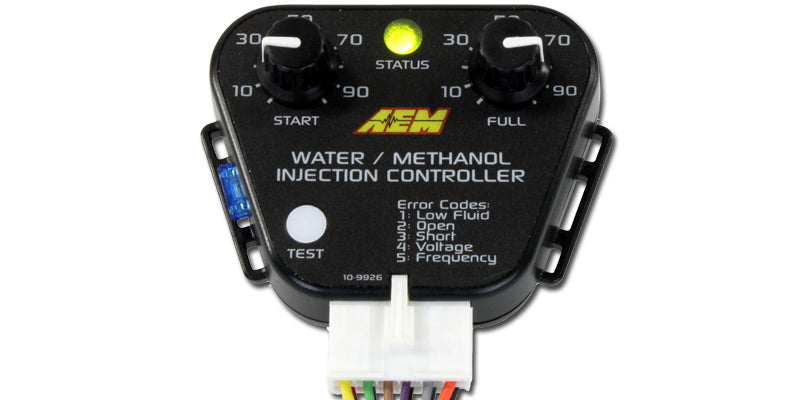

The second HD controller features a multiple input design. The Multi-Input controller can be programmed to work with a 0-5v signal from an external MAP sensor for Diesels running over 40 PSI of boost, or with a frequency based Injector Duty Cycle (IDC) signal, frequency-based mass airflow (MAF), or 0-5v voltage-based MAF signal (PN 30-3351 with 5 gallon tank, PN 30-3352 tank-less).

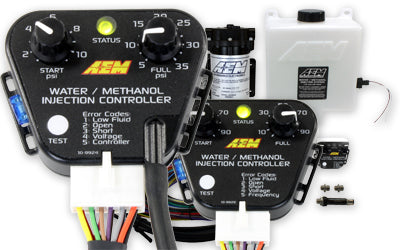

KIT CONTENTS BY PART NUMBER:

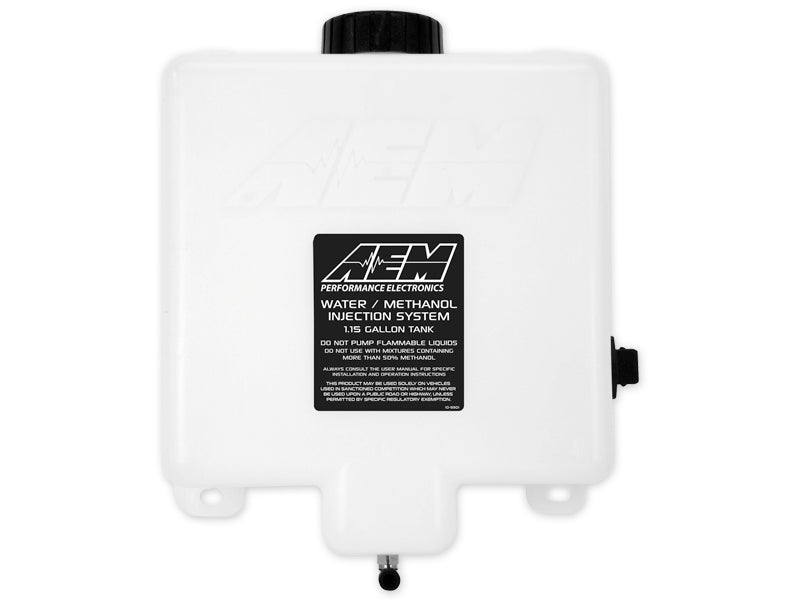

30-3300 AEM V2 Water/Methanol Injection Kit, Standard Controller Internal MAP with 35psi max, 200psi WM Pump, 1 Gallon Reservoir, Conductive Fluid Level Sensor

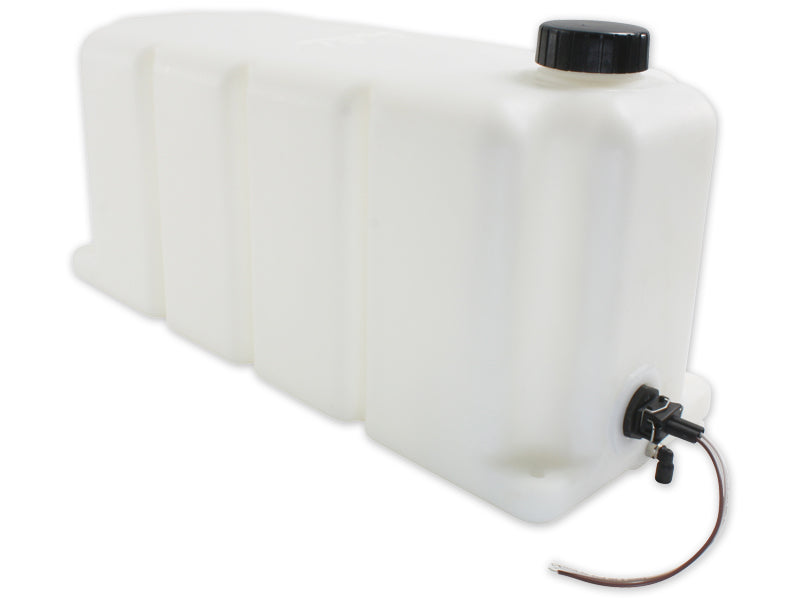

30-3301 - AEM V2 Water/Methanol Injection Kit, HD Controller Internal MAP with 40psi max, 200psi WM Pump, 5 Gallon Reservoir, Conductive Fluid Level Sensor
30-3302 AEM V2 Water/Methanol Nozzle and Controller Kit, Standard Controller Internal MAP with 35psi max, 200psi WM Pump, Jets, NO TANK INC.

30-3303 - AEM V2 Water/Methanol Nozzle and Controller Kit, HD Controller Internal MAP with 40psi max, 200psi WM Pump, Jets, NO TANK INC.

30-3350 - AEM V2 Water/Methanol Injection Kit, Multi Input Controller 0-5v/MAF Frequency or Voltage/Duty Cycle/Ext MAP, 200psi WM Pump, 1 Gallon Reservoir, Conductive Fluid Level Sensor

30-3351 - AEM V2 Water/Methanol Injection Kit, Multi Input Controller 0-5v/MAF Frequency or Voltage/Duty Cycle/Ext MAP, 200psi WM Pump, 5 Gallon Reservoir, Conductive Fluid Level Sensor

30-3352 - AEM V2 Water/Methanol Nozzle and Controller Kit - 30-3352 - V2 Water/Methanol Nozzle and Controller Kit, Multi-Input Controller - 0-5v/MAF Frequency or Voltage/Duty Cycle/Ext MAP, 200psi WM Pump, NO TANK INC.
