AEM K-Type EGT Sensor
**OPEN BOX**

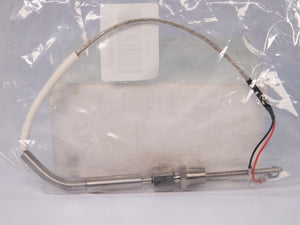

AEM's K-Type Thermocouple Sensor includes a closed-tip TC sensor with an Inconel sheath, 10' extension wire, 1/8" NPT compression fitting, and ring and terminal harness.
K-Type Thermocouple Temp Sensor Specifications
| Max Temperature | 1800° F (982.2°C) |
| Protective Tube Material | Inconel |
| Sensor Thread | 1/8" NPT (Compression Fitting) |
| Sensor Element | K-Type Thermocouple |
| Sheath Length | 3" / 76.2mm |
| Sheath Diameter | 0.125" / 3.18mm |
| Termination | Ring Terminals |
| Wire Length | 12" |
| Accuracy | Greater of 3.96°F / 2.2°C or 0.75% |
