Fuel Cell Weld-In Cages

FUEL CELL CONFIGURATOR

For a complete fuel cell package, run the fuel cell configurator HERE.

A weld-in cage will ease fuel cell installation by offering a pre-made, safe secure, robust cradle. The lower cage supports are made from 11 gauge STAINLESS STEEL. The upper cage is TIG welded by hand and made with a 1" x 1" x 1/16" STAINLESS STEEL tube. And because the tubing is not mild carbon steel, they are rust resistant. Welding is required and should be performed by a professional. RA-Series fuel cells fit snugly in the cage and are held in place with the included anodized aluminum straps. All parts are corrosion-resistant.

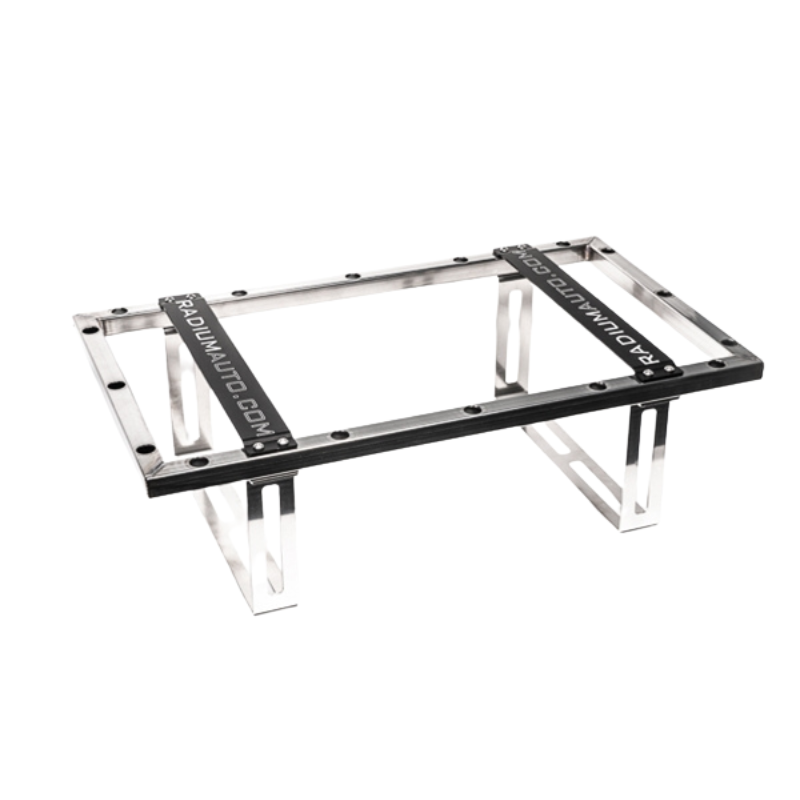

20-0906 FUEL CELL WELD IN CAGE, 6 GALLON is shown below.

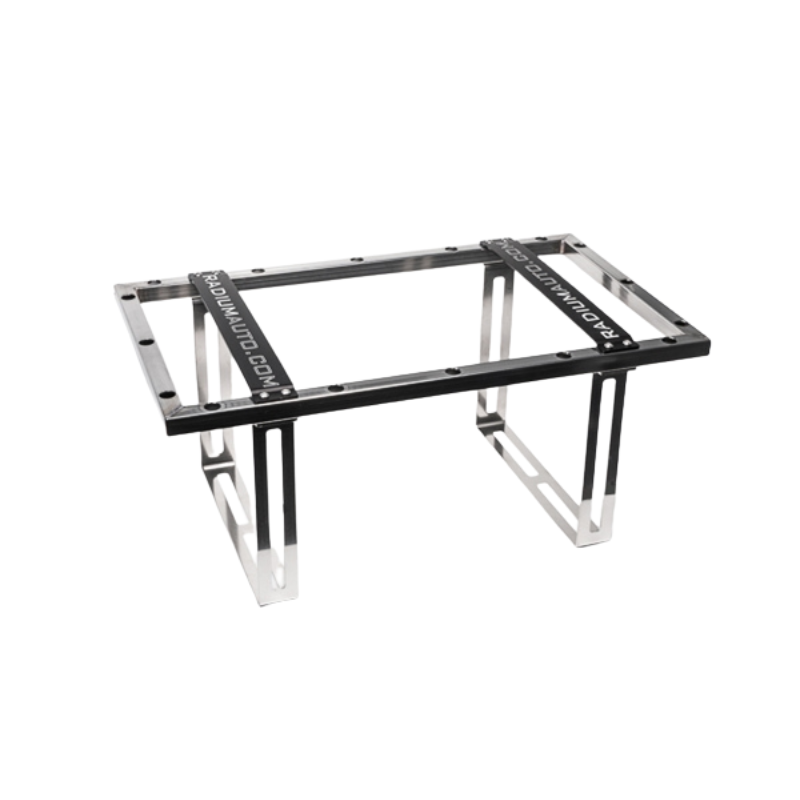

20-0910 FUEL CELL WELD IN CAGE, 10 GALLON is shown below.

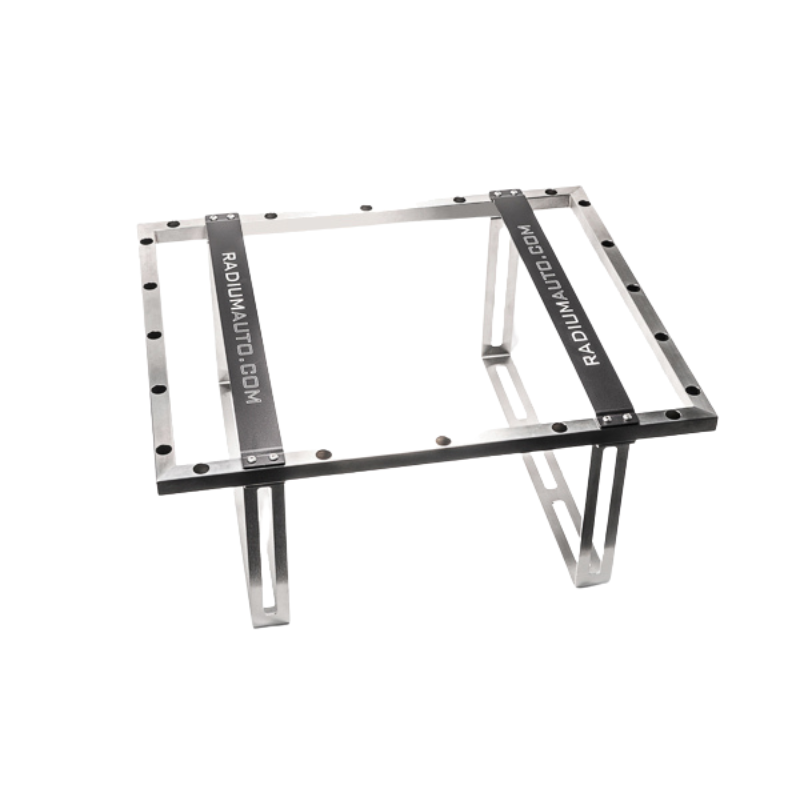

20-0914 FUEL CELL WELD IN CAGE, 14 GALLON is shown below.

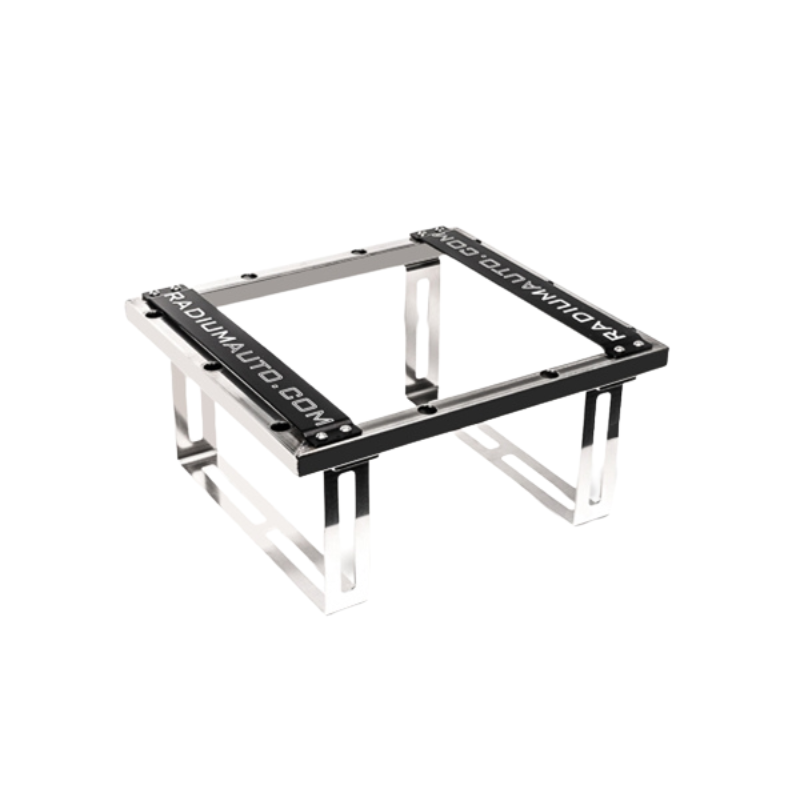

20-0922 FUEL CELL WELD IN CAGE, 22 GALLON is shown below.

NOTES:
1. The weld-in cages are ONLY compatible with the Radium RA-series fuel cells.
2. Discontinued 15-gallon RA-Series Fuel Cells are compatible with 14-gallon weld-in cages.
3. Made in Portland Oregon, USA.
