Mini PDM

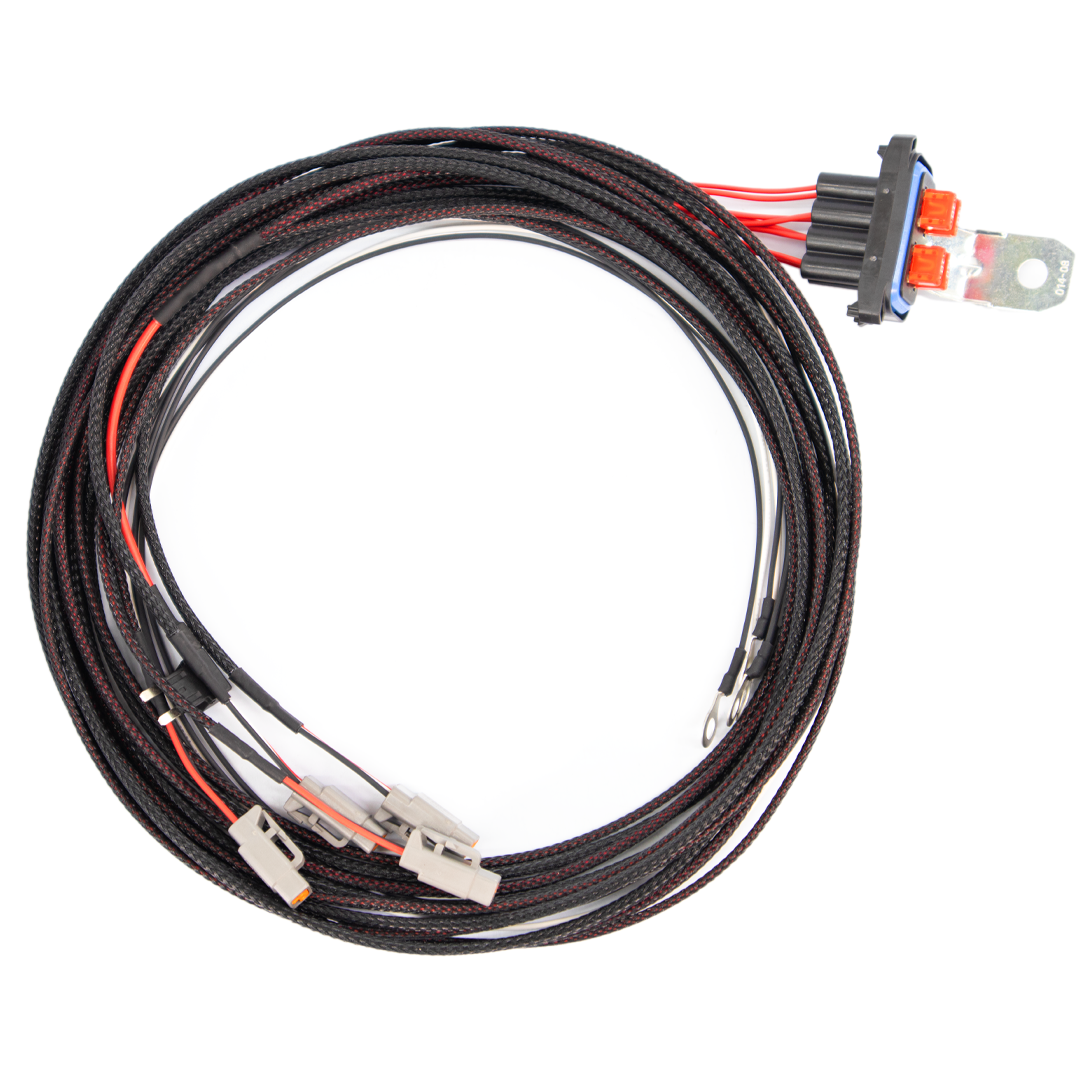

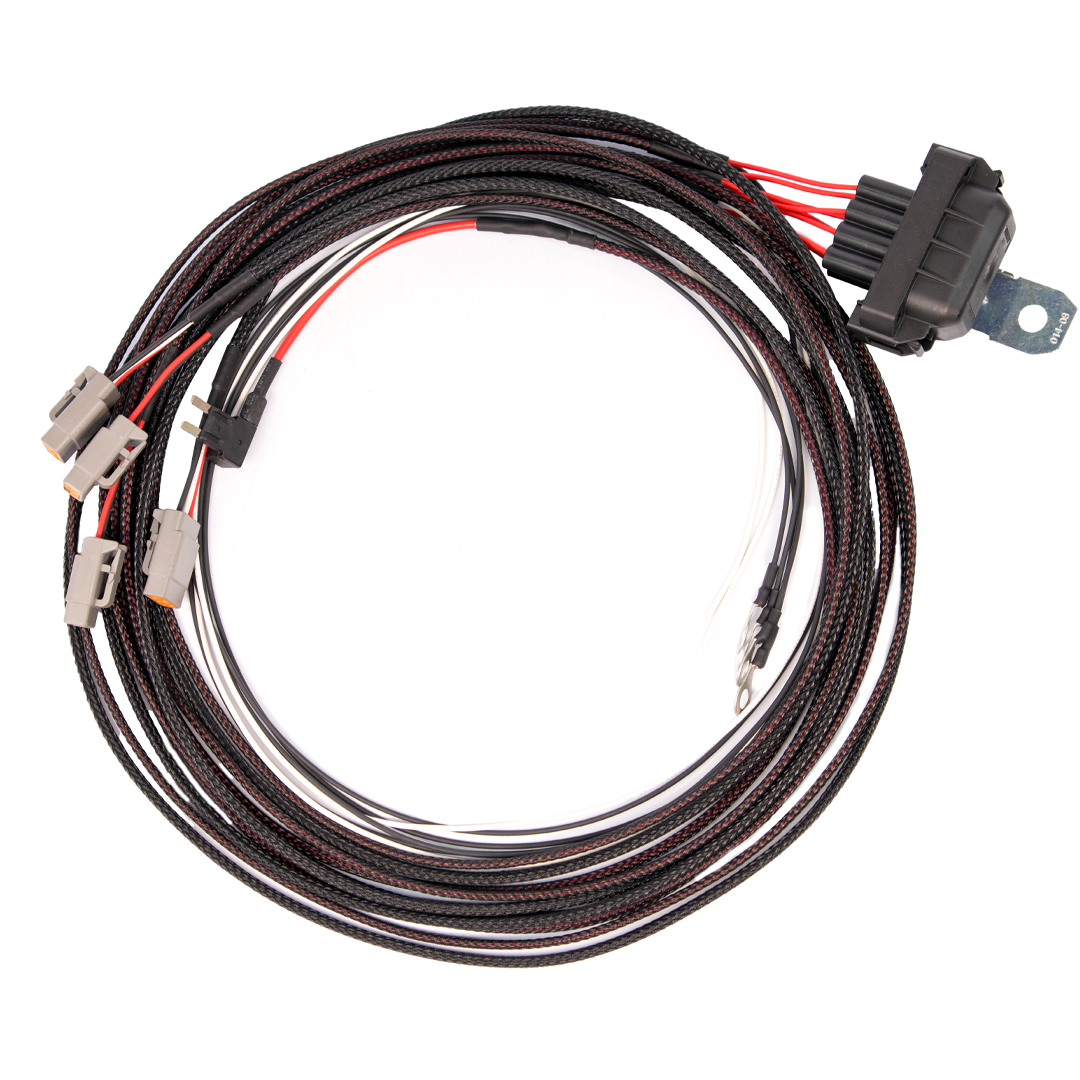

Need to add additional circuits the easiest way possible? Our Mini Power Distribution Harness allows you to add 4 independent circuits to your vehicle the easiest way Possible.

Using a Single Fuse tap into your existing fuse box we redirect power into 4 new independently fused circuits. These are then routed separately via (two) 2x 2 pin dtm and (two) 2x 3 pin dtm connectors. (mating connectors and pins included) Each dtm connector has a power feed from the fuse box and it's own independent ground ring. 3 pin dtm connectors include a pre-wired signal wire.

This harness easily allows you to wire in external devices of several types. Example the two 2 pin connectors can be used to wire in solenoids for boost by gear and devices for measuring resistance like thermistors and temp sensors/switches. Wiring in 3 pin devices like ethanol content, secondary pressure sensors, or speed/wheel sensors where a signal wire is routed back to the ecu are perfect for the two 3 pin dtm connectors.

Ground ring terminals are present on the harness for chassis grounding. These can easily be cut/stripped to wire into the sensor ground of the ecu or ground outputs for PWM at the ecu directly and the harness was designed with both signal and ground wiring in mind for a wide application use.
