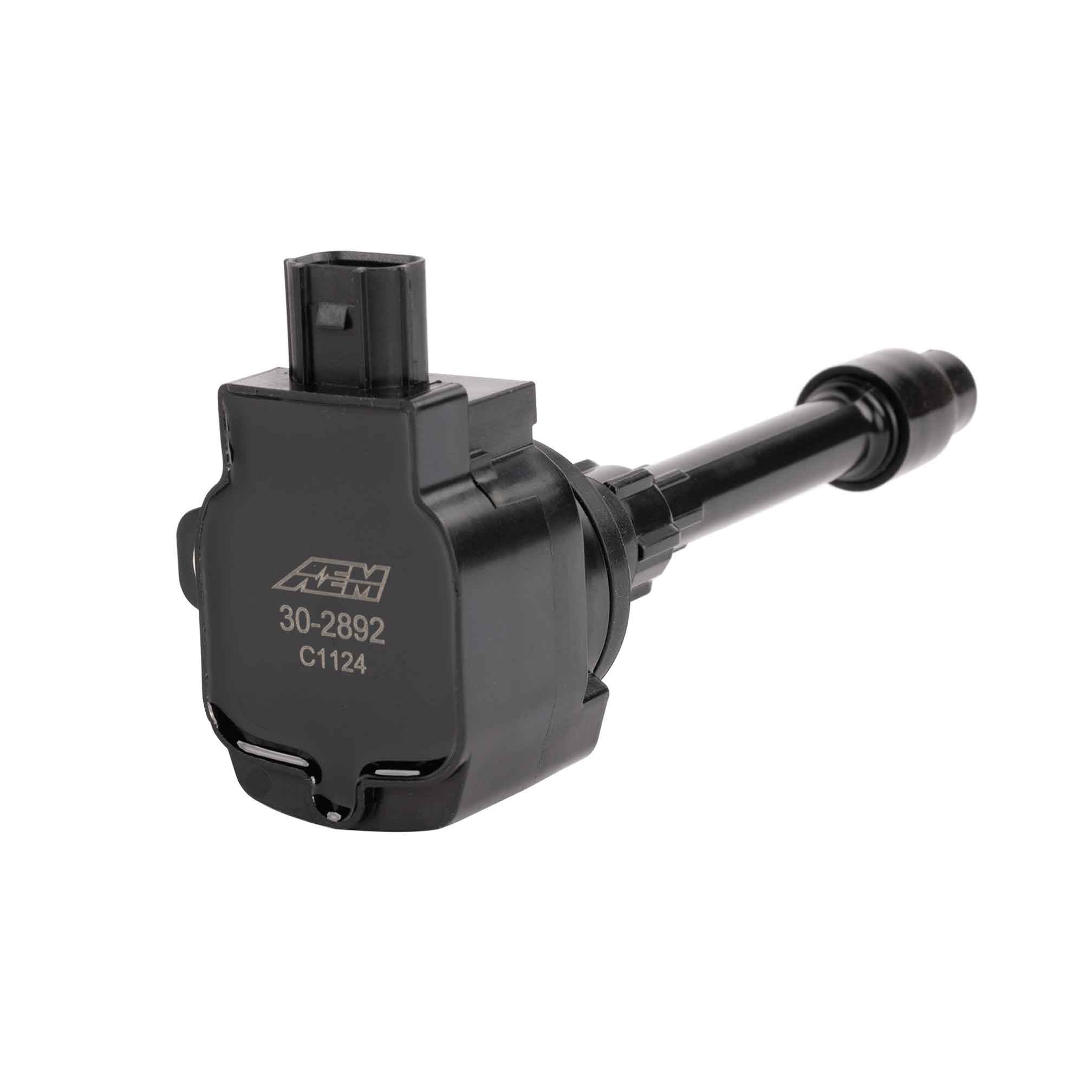

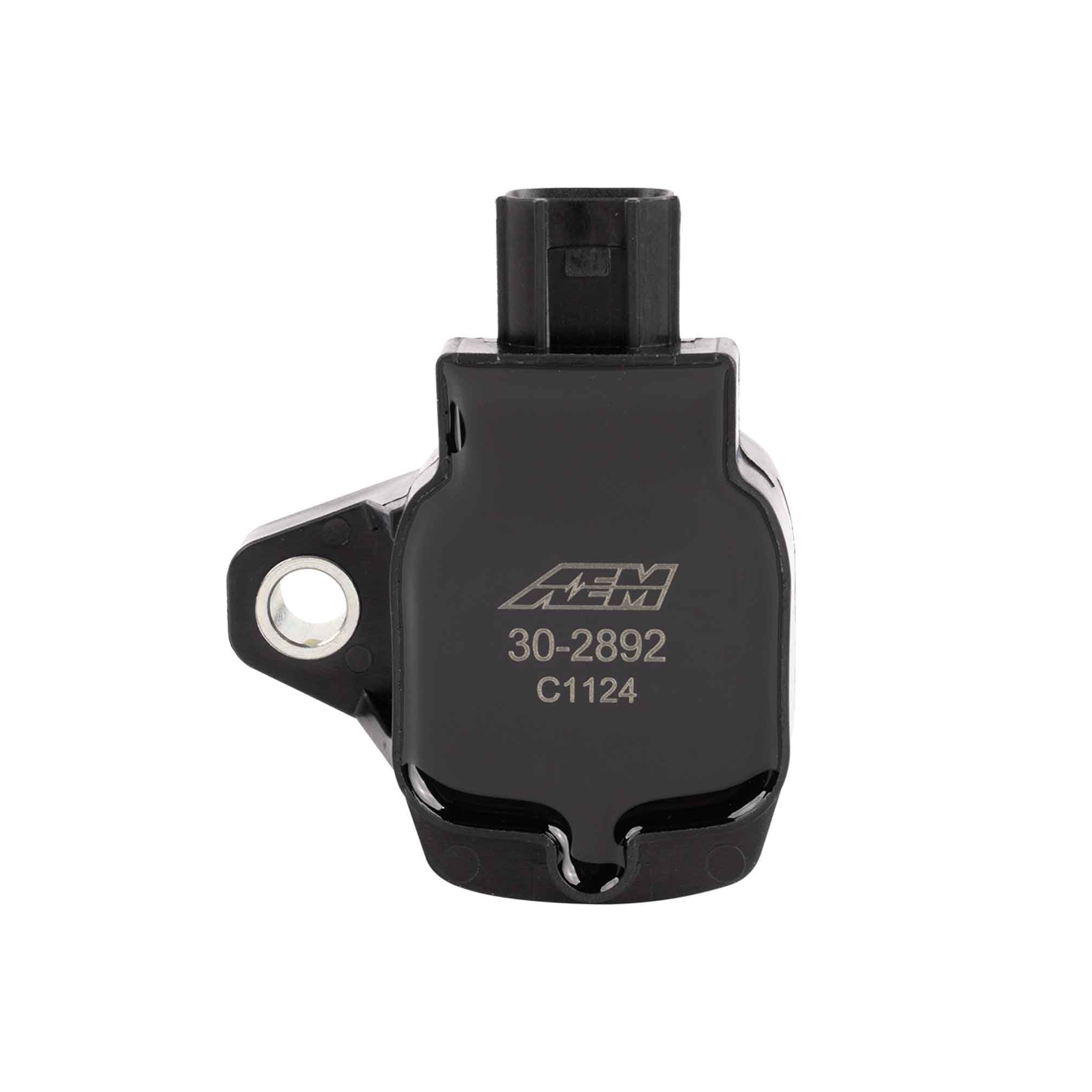

Honda Civic/Fit 2.0T/1.5L 15-18 AEM Smart Pencil Coils

  • $46.07



AEM Pencil Style Coils are back and better than ever, now with 15% more spark energy and an OEM fitment for unbeatable performance. With high shock and vibration resistance, these coils are built to handle even the toughest conditions, ensuring reliable ignition every time. The advanced bobbin technology improves thermal stability and mechanical strength, giving you superior durability and efficiency. Upgrade your ride today and experience the power boost you’ve been waiting for!

Features And Benefits:

  • 15% More Spark Energy
    Benefit: Improved throttle response and enhanced
    Overall performance for a more powerful driving
    experience.
  • OEM Fitment
    Benefit: Easy installation with a perfect fit.
    ensuring no modifications are needed for optimal
    performance.
  • High Shock and Vibration Resistance
    Benefit: Reliable ignition even in the harshest conditions
    conditions, providing consistent performance and
    durability.
  • Advanced Bobbin Technology
    Benefit: Enhanced thermal stability and
    mechanical strength, ensuring long-lasting, high-efficiency operation under extreme temperatures.

Product Overview

AEM Pencil Coils feature highly specialized silicon magnetic steel cores, optimized windings, proper resistance, and engineered turn ratios that deliver a high-performance coil. Specialized high-temperature epoxy resists shock and vibration while increasing thermal conductivity. These are direct replacements for OEM coils.

Application:

  • 15-19 Honda Fit 1.5L
  • 16-20 Honda Civic 2.0L

Specs

Primary Resistance (Ω) 0.45(Ω)
Primary Inductance (mH) at 1kHz 1.03 mH
Primary Wire Size (mm) 0.51 mm
Primary Wire Insulation Temperature (°C) 180°C
Primary Turns 91
Secondary Resistance (KΩ) 9.5 (KΩ)
Secondary Inductance (H) at 1kHz 14.8(H) at 1kHz
Secondary Wire Gauge (mm) 0.045 mm
Secondary Wire Insulation Temp (°C) 180°C
Secondary Turns 11,000
Turns Ratio 120
