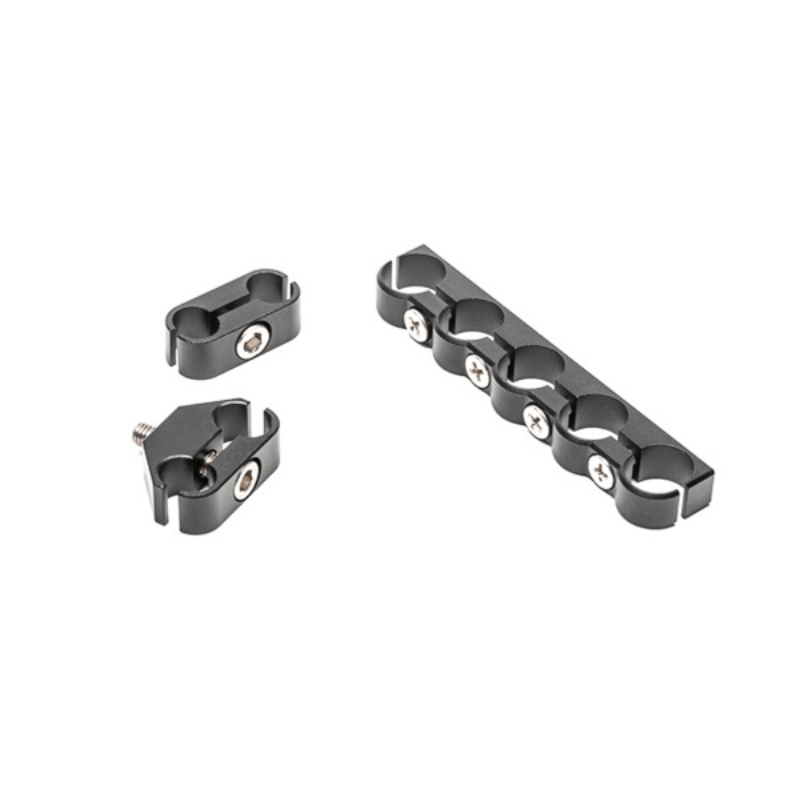

Hose/Tube Separator Clamps
The following are billet aluminum clamps used for retaining hard lines, soft lines, hose, tubing, etc.

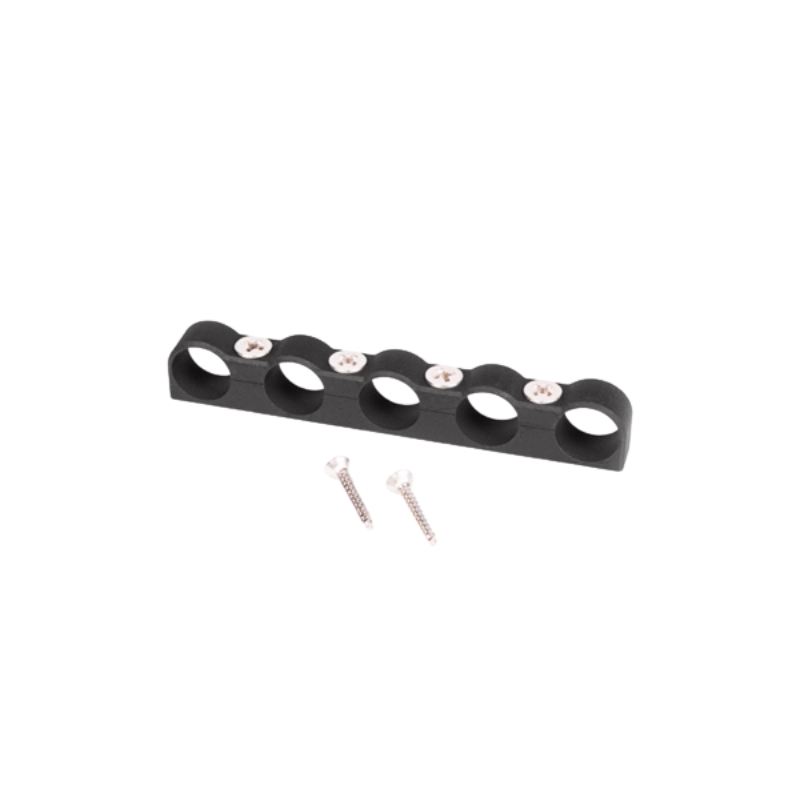

20-0231 HOSE SEPARATOR CLAMP, 5-WAY
Anodized black billet aluminum clamp used for securing -6AN hoses, wire harnesses, etc. Includes all stainless steel hardware (4 bolts and 2 sheet metal screws).
Each of the 5 inner diameters (ID) are 9/16" (0.563inch or 14.3mm).

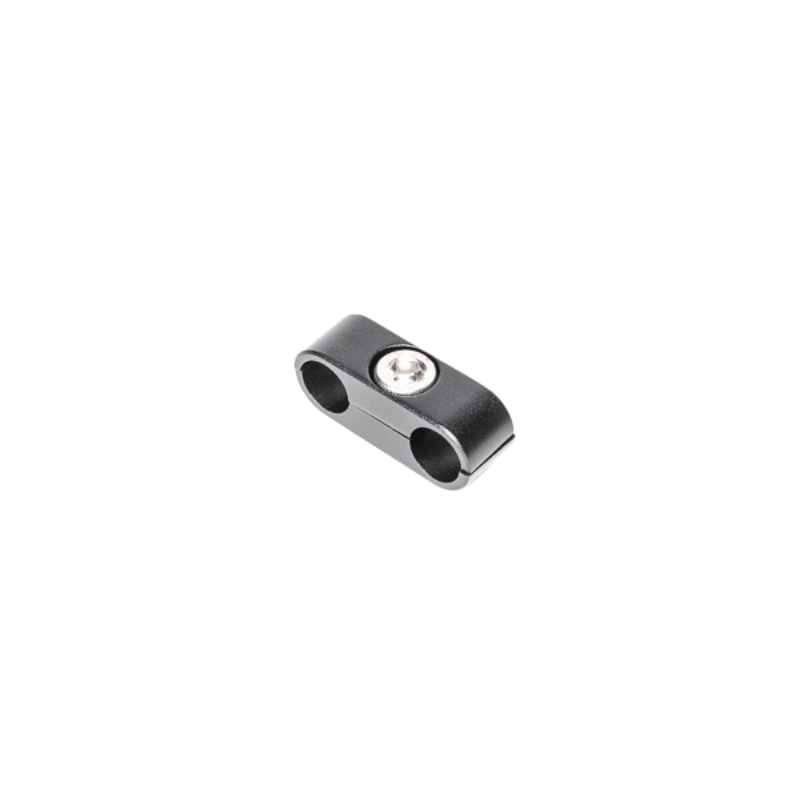

20-0417 HOSE SEPARATOR CLAMP, 2-WAY
Anodized black billet aluminum clamp used for securing -6AN hard tubing, wire harnesses, etc. Includes a M6x1mm stainless steel bolt. Both inner diameters (ID) are 0.39inch (or 10mm).
NOTE:
Part Numbers 20-0417 and 20-0817 are similar. Listed below are the differences.
a. 20-0817-The bottom clamp is thread tapped. The provided bolt screws into the bottom clamp. A threaded boss is not required.
b. 20-0417-The bottom clamp has a through hole (not threaded). It requires a M6x1mm threaded boss for securing the provided bolt as shown below.

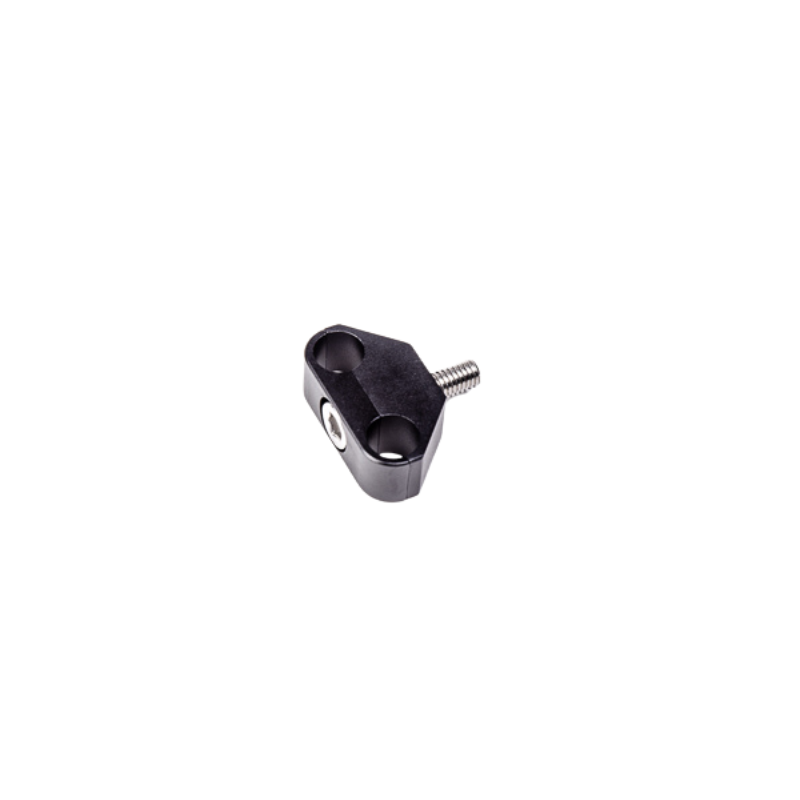

20-0817 HOSE SEPARATOR CLAMP, 2-WAY, THREADED
Anodized black billet aluminum clamp used for securing -6AN hard tubing, wire harnesses, etc. Includes a M6x1mm stainless steel bolt. Both inner diameters (ID) are 0.39inch (or 10mm).
NOTE:
Part Numbers 20-0417 and 20-0817 are similar. Listed below are the differences.
a. 20-0417-The bottom clamp has a through hole (not threaded). It requires a M6x1mm threaded boss for securing the provided bolt.
b. 20-0817-The bottom clamp is thread tapped. The provided bolt screws into the bottom clamp. As shown below, a threaded boss is not required.
