Honda Civic EP 01-05 Acura RSX DC5 02-06 Adjustable Spherical Top Hat

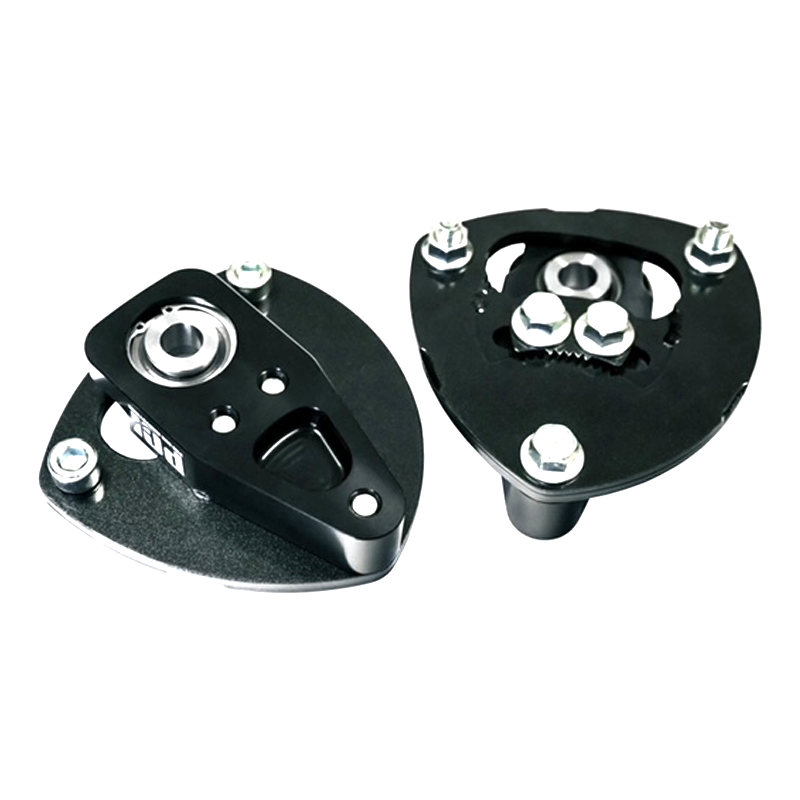

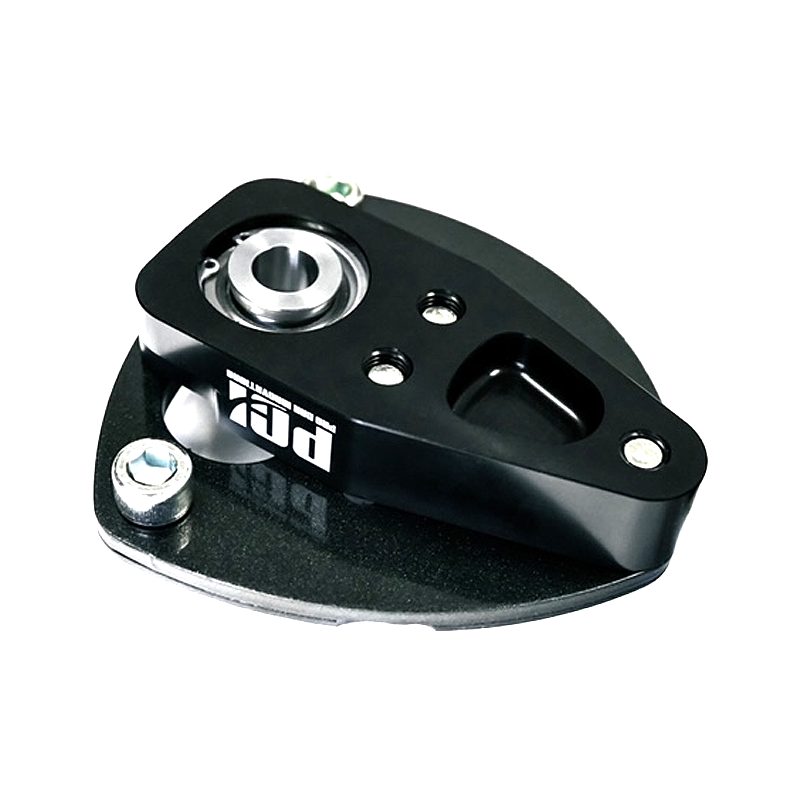

Adjustable camber/caster spherical front top hat set for 12mm and 14mm strut shaft threads.

Our adjustable camber top hats have a fixed offset caster setting of +3 degrees over stock for increased positive caster. Due to clearance, camber adjustability, and reduction in steering Ackermann, we felt this was the max amount of caster offset without having any negative side effects.

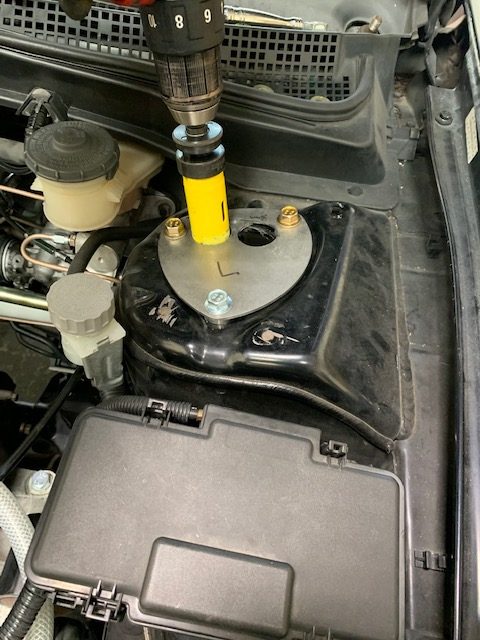

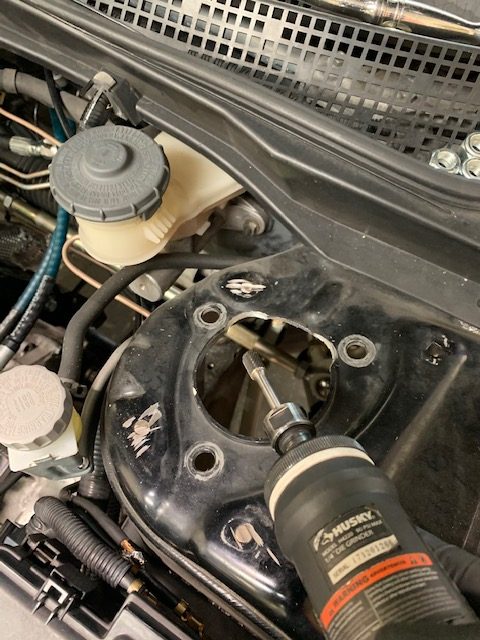

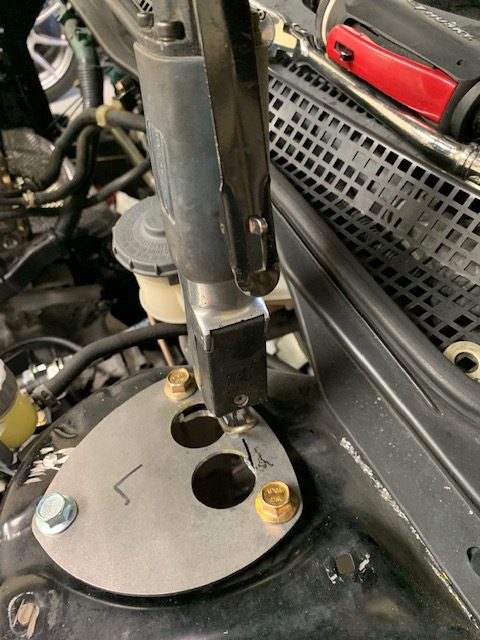

For installation, the shock tower will require a small cut out (**see pictures**). The kit will have a supplied bolt-on steel template to easily and precisely make the modification. This will not weaken the tower or prevent the use of stock or other types of top hats.

Vehicle Fitment:

• Acura RSX DC5 2002-2006

• Honda Civic EM EP 2001-2005

Camber/Caster Specs:

• Fixed caster: +3 degrees over stock

• Adjustable camber: +1.5 degrees and -2.5 degrees over stock

***MAX CAMBER OR CASTER NUMBERS WILL BE STOCK CAMBER OR CASTER NUMBERS PLUS THE ABOVE NUMBERS.***

***ALL MOUNTING HARDWARE WILL BE SUPPLIED. M10X1.25 THREAD GRADE 10.9 ZINC-PLATED HEX HEAD FLANGE BOLTS NOT SHOWN IN PICTURES.***

***MAY NOT FIT ALL STRUTS** The combined height of the spherical with the supplied top and bottom spacers is 1″ or 25.4mm. Your strut will need to have at least that plus enough extra thread to securely thread on and properly torque the nut.***
